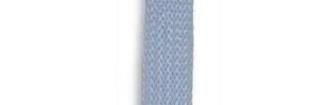

GREMFLEX PET TECHNICAL DATA SHEET GREMFLEX PET: Polyester monofilament expandable sleeving. This expandable braided sleeving, made of lightweight but tough polyester monofilaments, offers an economical answer to installing, protecting, strengthening, enhancing and assembling over bundles, wires, cables and flexible piping. The push back effect of Gremflex PET enables it to cover a wide range of sizes with only few references and allows for easy application. With continuous working temperatures of -50C up to +150C and resistance to most chemicals, Gremflex PET can be used in hostile conditions and is suitable for all industries. Moreover, it is self-extinguishing due to its braided construction. Working temperature -50C up to +150C Standard colours Black, grey. Non-standard colours Upon request. DIMENSION DATA Expansion Reference Range of use Weight (*) Size maxi (**) Gremflex advised (mm) g / 100 m (mm) PET 3 3 1 up to 5 7 395 PET 4 4 2 up to 7 9 445 PET 5 5 3 up to 9 12 515 PET 6 6 4 up to 11 14 580 PET 8 8 5 up to 12 17 770 PET 10 10 7 up to 15 22 900 PET 12 12 8 up to 17 24 1010 PET 15 15 10 up to 21 27 1230 PET 20 20 14 up to 25 32 1400 PET 25 25 18 up to 32 38 1720 PET 30 30 20 up to 40 48 2160 PET 40 40 30 up to 55 67 2870 PET 50 50 40 up to 65 78 3960 (*) Indicative weight for 100 meters. (**) Indicative diameter, to follow in case of important variations of sections on the part to be protected. GREMFLEX PET TECHNICAL CHARACTERISTICS: Standard Requirements Test Methods PHYSICAL Monofilament Polyester Size : 0,22 mm Working temperature -50C up to +150C Withstand peaks +220C Melting point +250C Flame resistance Pass Flame requirements of: CEI 332-1 and FMVSS 302 (Type A). I2 according to NF F16-101. CHEMICAL Oxygen index limit 34% Fume toxicity Pass CEI 754-1 and CEI 754-2. Halogen-free. Fume opacity Pass NF C 20452 (Polymer). Chemical resistance Unaffected by most chemicals (Contact us for special environments) CUTTING Couplers or lengths. Lengths with Gremfix system (See technical data sheet) pre-installed on one or both ends. PACKAGING Coils fastened with ties under plastic wrapping. We certify that the values provided are as accurate as possible. Use of these values, however, remains the sole responsibility of the customer and cannot in any way substitute for testing the product under real conditions of use. The user must assess whether this product is suitable for a particular use. Gremco shall not be held responsible for any loss or anomaly resulting from the correct or incorrect use of this product. 4-8 quai de seine F 93584 St OUEN cedex Tl. 33 (0)1 40 12 02 34 Fax. 33 (0)1 40 12 97 25 www.gremco.fr FTE PET 01/b 03/04
