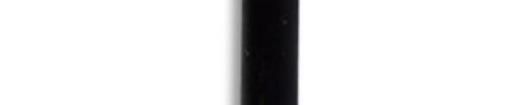

Defence Standard 61-12 Part 4 - 7-2-A Unscreened Multicore Cable Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.22mm Construction : T0.2 0.0087 Stranded Dia.(mm) : 0.58 Insulation Thickness : 0.31 Insulation Dia.(+/-0.1mm) : 1.2 Insulation : PVC Insulation Colours : See Insulation Colours Table Jacket Material : PVC Jacket Colour : Black Nylon Rip Cord : 150D Electrical Characteristics: Max.Conductor DC Resistance at 20C (/Km) : <93.8 20C Insulation Resistance (M/Km) : >200 Max. Conductor Temperature : +70C Min. Ambient Temperature : -55C (After installation and only when cable is in a fixed position) Rated Voltage(V) : 440 Insulation Colours table Core Number Colour Core Number Colour Core Number Colour 1 Red 13 Red/Blue 25 Yellow/Green 2 Blue 14 Green/Red 26 White/Green 3 Green 15 Yellow/Red 27 Green/Black 4 Yellow 16 White/Red 28 Orange/Green 5 White 17 Red/Black 29 Grey/Green 6 Black 18 Red/Brown 30 Yellow/Brown 7 Brown 19 Yellow/Blue 31 White/Brown 8 Violet 20 White/Blue 32 Brown/Black 9 Orange 21 Blue/Black 33 Grey/Brown 10 Pink 22 Orange/Blue 34 Yellow/Violet 11 Turquoise 23 Green/Blue 35 Violet/Black 12 Grey 24 Grey/Blue 36 White/Violet www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 27/05/16 V1.4Defence Standard 61-12 Part 4 - 7-2-A Unscreened Multicore Cable Part Number Table Core Jacket Diameter Reel Length Description Filler Part Number No. (mm) (m) 25 PP000272 Cable, Unscreened, DEF 7-2-2A 2 3.4 100 PP000273 25 PP000274 Cable, Unscreened, DEF 7-2-3A 3 3.6 - 100 PP000275 25 PP000276 Cable, Unscreened, DEF 7-2-4A 4 3.9 100 PP000277 25 PP000278 Cable, Unscreened, DEF 7-2-6A 6 4.6 1.2 PVC Strip 100 PP000279 25 PP000280 Cable, Unscreened, DEF 7-2-8A 8 5.6 1.9PVC Strip 100 PP000281 25 PP000282 Cable, Unscreened, DEF 7-2-12A 12 6.1 - 100 PP000283 25 PP000284 Cable, Unscreened, DEF 7-2-18A 18 7.4 1.2PVC Strip 100 PP000285 25 PP000286 Cable, Unscreened, DEF 7-2-20A 20 7.8 100 PP000287 - 25 PP000288 Cable, Unscreened, DEF 7-2-25A 25 8.7 PP000289 100 Cable, Unscreened, DEF 7-2-36A 36 9.8 1.2PVC Strip PP000290 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 27/05/16 V1.4
