PP000363 Pro Power

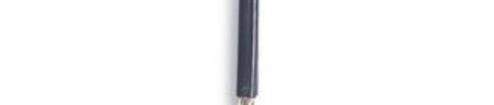

RG58 BU PVC 50 Coaxial Cable, 100m, 50m Application: For communication and signal control systems. Multi-construction 1 Conductor Material : Tinned copper Construction : T0.8 1 2 Conductor Area CSA : 0.50mm Insulation Material : Solid PE Insulation Thickness : 1.03 Insulation Dia.(+/-0.1mm) : 2.95 Insulation Colour : Natural Shield Braiding Layer : Tinned copper Construction (stranded) : T0.12 112 Braiding coverage(%) : 94% Jacket Material : PVC Jacket Thickness(mm) : 0.65 Jacket Dia.(0.15mm) : 4.95 Jacket Colour : Black Packaging 100m/50m Cardboard Reel Electrical Characteristics Max. Conductor DC Resistance at 20C (/km) : 38.4 Min. Insulation DC Resistance at 20C (MkM) : >500 Rated Temperature(C) : 80 Rated Voltage(V) : 30 Capacitance(pF/m) : 100 5 Velocity ratio : 66% Impedance() : 50 3 Attenuation at 20C (dB/100m) (8%) 50MHz 10.65 200MHz 22.6 650MHz 42 1,000MHz 67 Flame Retardancy : IEC 60332-1 UL VW-1 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 30/09/14 V1.0RG58 BU PVC 50 Coaxial Cable, 100m, 50m Diagram: Part Number Table Description Part Number RG58 BU PVC, 50 Coaxial Cable, 50m PP000363 RG58 BU PVC, 50 Coaxial Cable, 100m PP000364 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 30/09/14 V1.0
