PP000381 Pro Power

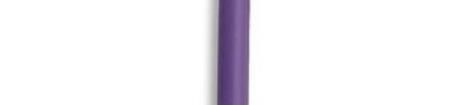

2 BS4808 0.75mm (24/0.2mm) PVC Equipment Wire Reference Standard BS4808 Part 2 Class 3 and Def. Stan. 61-12(Pt6) Type 3 Specifications: Conductor Material : Tinned Copper 2 Conductor Area CSA : 0.75mm Construction : T0.2 0.00824 Stranded Dia.(mm) : 1.13 Jacket Material : PVC Jacket Thickness : 0.59 Jacket Dia.(0.1mm) : 2.3+0.15/-0.1 Reel Length (Metric) : 100m Electrical Characteristics: Max. Conductor DC Resistance at 20C (/Km) : <25.2 Min. Insulation DC Resistance at 20C (M/Km) : 200 Rated Temperature(C) : -25 to +85 Rated Voltage(V) : 1,500 Flame Performance : UL1581VW-1 IEC60332-1 Part Number Table Reel Length Description Colour Part Number (m) Black PP000045 Brown PP000046 Red PP000047 Orange PP000048 Yellow PP000049 Green PP000379 100 Blue PP000380 Wire, 24/0.2mm, Tinned Copper Violet PP000381 Grey PP000382 White PP000383 Pink PP000384 Green / Yellow PP000385 Black PP000386 White 500 PP000387 Violet PP000135 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 09/03/15 V1.2X-ON Electronics Authorized Distributor Click to view similar products for Pro Power manufacturer. Other Similar products are found below : PPCY4C075100M PPCY3C10050M PPC217 PP001328 PP001316 PP001109 PP001088 PP000940 PP030 PP000909 PP001326 PP001308 PP000877 PP000868 PP000704 PP001163 PP001156 PP001085 PP000510 PP001076 PP000944 PP000914 PP000407 PP000386 PP000870
