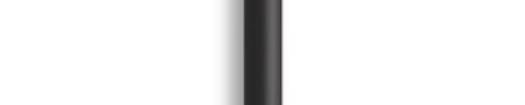

Photovoltaic PV1-F Solar Cable Application: This solar cable is intended for the interconnection within photovoltaic systems such as solar panel arrays. Suitable for fixed installations, internal and external, within conduit or systems, but not direct burial applications. This solar cable is ozone- resistant according to BS EN 50396, UV resistant according to HD 605/A1, and is tested for durability according to EN 60216. The cable is designed to last at least 25 years. Being flame protected with a halogen free fire retardant system with low smoke properties these cables are designed for safety in case of fire. Construction: Conductor: Class 5 flexible tinned copper conductor according to DIN VDE 0295, BS EN/IEC 60228 Insulation: Halogen-free cross-linked compound Sheath: Halogen-free cross-linked, flame retardant compound Type EM4 according to BS EN 50363-2-1 Cable Standards: UV Resistant HD 605/A1 Low Smoke Halogen Free BS EN 50267-2-1, BS EN 60684-2, BS EN 61034, BS EN 50267-2-2 Ozone Resistant BS EN 50396 Flame Retardant BS EN/IEC 60332-1-2 Thermal Endurance BS EN/IEC 60216-1 Characteristics: Voltage Rating (Uo/U) AC : 600/1000V DC : 900/1800V Temperature Rating: Fixed : -40C to +90C www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 10/02/15 V1.3Photovoltaic PV1-F Solar Cable Minimum Bending Radius: Fixed : 4 overall diameter Flexed : 5 overall diameter Maximum Voltage (Umax) 1.8kV DC (conductor/conductor, non earthed system, circuit not under load) Maximum Conductor Temperature +120C (for 20,000h) Sheath Colour Black Dimensions: Nominal Cross Nominal Overall Nominal Weight Part Number No. of Cores Sectional Area Diameter Kg/Km mm mm PP000513 4 5.2 57 1 PP000514 6 5.9 79 Conductors: Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables Maximum Resistance of Conductor at 20C Nominal Cross Sectional Area mm Metal-Coated Wires /km 4 5.09 6 3.39 Electrical Characteristics: Current Rating Nominal Cross Sectional Area No. of Cores mm In Air Amps 4 55 1 6 70 Based on a 60C ambient temperature www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 10/02/15 V1.3
