PP000625 Pro Power

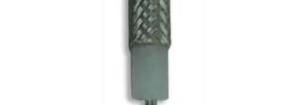

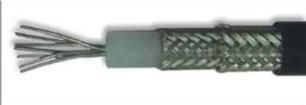

Coaxial Cable RG214 Product Description: Application For communication and signal control systems. Reference Standard Customers sample spec.and the general standard Multi-construction 1 Cable Construction: Conductor Silver Plated Copper Construction 0.75 0.01 7 Standard Dia.(mm) 2.30 Insulation Solid PE Thickness 2.6 Insulation Dia.(+/-0.2mm) 7.25 Insulation Colour Nature Braiding 1 Silver Plated Copper Construction (stranded) 0.16 0.008 24 6 Braiding coverage 80% Braiding 2 Silver Plated Copper Construction (stranded) 0.16 0.008 24 7 Braiding coverage 90% Jacket PVC Thickness (mm) 0.9 Dia.(+/-0.3mm) 10.8 Jacket Color Black Packaging 100m reel www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 18/02/15 V1.0Coaxial Cable RG214 Electrical Characteristics: Max.Conductor DC Resistance at 20C (/Km) <6.1 Min.Insulation DC Resistance at 20C (M*KM) 10,000 Rated Temperature(C) 80 Rated Voltage(V) 30 Capacitance(pF/m) <101 Velocity ratio (%) 66.7 Impedance() 50 Attenuation at 20C (- dB/100m) (+/-8%) 100MHz 7 500MHz 14.7 1,000MHz 22.5 2,500MHz 40 Design: Part Number Table Description Part Number Cable, Coaxial, 100m, Black, RG214 PP000625 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 18/02/15 V1.0
