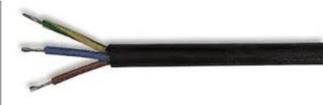

Multicore Cable - 3 Core Technical Specification: S.No. Performance Items Unit Technical Data 1 General PP000651, PP000652 PP000649, PP000650 a) Cable Type/Code YGG b) No. of Cores and Cross-Sectional Area of Conductor 3G0.75 3G1.5 c) Nominal Voltage Uo/U V 450/750 d) Execute Standards(Non-identical adoption) 2 Construction Dimensions 2.1 Conductor a) Materiel Annealed tinned copper wires b) In accordance with Standards Class 5,as per IEC60228 2 c) Nom. Cross-Sectional Area mm 0.75 1.5 d) No. of Wire/Dia. of Wire In Conductor (Nos./mm) 24/0.2 30/0.25 e) Nominal Diameter mm 1.13 1.55 2.2 A Layer of Isolation Over Conductor a) Material mm Polyester tape 2.3 Insulation a) Material Silicone Rubber b) Average Thickness mm 0.6 0.8 c) Dia. Over Core mm 2.33 3.15 d) Core Identification Blue, Brown, & G/Y Blue, Brown & G/Y www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 06/05/15 V1.1Multicore Cable - 3 Core Technical Specification: S.No. Performance Items Unit Technical Data 2.4 Outer Sheath a) Materiel Silicone Rubber b) Nominal Thickness mm 1 1.2 c) Min. Thinnest Thickness mm 0.75 0.92 d) Sheath Diameter mm 7 9.2 e) (+/-)Tolerance mm 1 1 3 Electricity Data a) Max. DC Resistance at 20C /km 26.7 13.7 b) Voltage Test 2,200V/5min, not punctured c) Rated current A 10 20 4 Engineering Data 4.1 Cable Operation Temperature Range a) Nominal Operation C -40 to +180 -40 to +180 Part Number Table Description Part Number 2 Multicore, 3 Core, 1.5mm , 25m, White PP000649 2 Multicore, 3 Core, 1.5mm , 25m, Black PP000650 2 Multicore, 3 Core, 0.75mm , 25m, White PP000651 2 Multicore, 3 Core, 0.75mm , 25m, Black PP000652 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 06/05/15 V1.1
