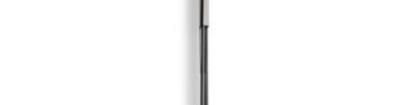

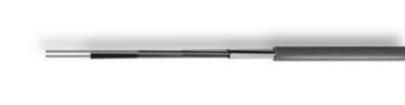

Screened Paired LSF Audio, Data and Instrumentation Cable PP000871 PP000874, PP000869 & PP000872 Application: The cables are suitable for use in instrumentation, data and audio applications where protection against electrical interference is required. Cables with polyethylene insulation show lower signal loss than those using PVC. Construction: Conductor : Stranded tinned copper conductor Insulation : PE (Polyethylene) Screen : Aluminium foil Drain Wire : Tinned copper Sheath : LSF (Low Smoke and Fume) Characteristics: Part Number Voltage Rating Temperature Rating Core Identification Sheath Colour PP000871 Fixed : -20C to +75C 1 Pair : Black & Red PP000874 300V Grey PP000869 Fixed : -20C to +80C 1 Pair : Black & Transparent PP000872 600V Electrical Characteristics: Capacitance at 1kHz Max. Resistance of Conductor at 20C Part Number pF/m /km PP000871 111.5 47.6 PP000874 88.6 41.8 PP000869 97.8 26.4 PP000872 75 14.7 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 17/06/15 V1.2Screened Paired LSF Audio, Data and Instrumentation Cable Dimensions: Conductor No. of Max. Nominal Overall Nominal No. of AWG Part Number Area CSA Strands x Strand Diameter Weight Pairs Size mm Size (mm) mm kg/km PP000871 22 0.33 7 0.24 3.51 23 PP000874 20 0.52 7 0.3 5.2 38 1 PP000869 18 0.82 16 0.25 5.6 46 PP000872 16 1.31 19 0.29 7.95 84 Part Number Table Reel Length Description Part Number (m) Screened Pair Cable, 1PR, 22AWG PP000871 Screened Pair Cable, 1PR, 20AWG PP000874 100 Screened Pair Cable, 1PR, 18AWG PP000869 Screened Pair Cable, 1PR, 16AWG PP000872 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 17/06/15 V1.2
