PP000916 Pro Power

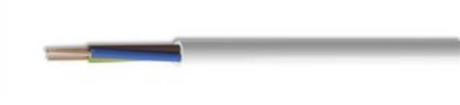

3182B, 3183B LSZH / H05Z1Z1-F Unscreened Multicore Flexible Cable Application: Used as an indoor general wiring cable primarily for installations in public areas. Examples include use on pendant lighting drops or as a general supply lead within hospital or airport projects. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment. Cable Standards: Made in accordance with the following: BS EN 50525-3-11 (HD21.14), BS EN/IEC 60332-1-2, BS EN/IEC 60332-3-24.C Construction: Conductor : Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation : LSZH (Low Smoke Zero Halogen) Type TI6 according to BS EN 50363 Sheath : LSZH (Low Smoke Zero Halogen) Type TM7 according to BS EN 50363 Characteristics: Voltage Rating (Uo/U) : 300/500V Temperature Rating : -20C to +60C Min. Bending Radius : 5 overall diameter Core Identification : 2 core: Blue & Brown 3 core: Green/Yellow, Blue & Brown Sheath Colour : White & Black Electrical Characteristics: Current Carrying Capacity and Mass Supportable Current Carrying Capacity Nominal Cross Max. Mass Supportable by Sectional Area Twin Flexible Cord Single-Phase AC Three-Phase AC 2 mm kg Amps Amps 0.75 6 6 3 1 10 10 5 1.5 16 16 5 2.5 25 20 5 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 15/05/15 V1.13182B, 3183B LSZH / H05Z1Z1-F Unscreened Multicore Flexible Cable Voltage Drop Nominal Cross DC or Single-Phase AC Three-Phase AC Sectional Area mV/A/m mV/A/m 2 mm 0.75 62 54 1 46 40 1.5 32 27 2.5 19 16 Conductor operating temperature: 60C* * The tabulated values above are for 60C thermoplastic or thermosetting insulated flexible cords and for other types of flexible cords they are to be multiplied by the following factors: 90C thermoplastic or thermoseting insulation : 1.09 De-Rating Factors: 60C Thermoplastic or Thermosetting Insulated Cords Ambient Temperature +35C +40C +45C +50C +55C De-Rating Factor 0.91 0.82 0.71 0.58 0.41 Conductors: Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables Max. Resistance of Nominal Cross Max. Diameter of Wires Conductor at 20C Sectional Area in Conductor Plain Wires 2 mm mm /km 0.75 0.21 26 1 0.21 19.5 1.5 0.26 13.3 2.5 0.26 7.98 The above table is in accordance with BS EN 60228 (previously BS 6360) Dimensions: Nominal Cross Nominal Thickness Nominal Overall Nominal No. of Colour Part Number Sectional Area of Insulation Diameter Weight Cores Codes 2 mm mm mm kg/km PP000916 2 White 0.75 0.6 6.3 57 PP000917 2 Black 0.75 0.6 6.3 57 PP000918 2 White 1 0.6 6.6 65 PP000919 2 Black 1 0.6 6.6 65 PP000920 2 White 1.5 0.7 7.4 84 PP000921 2 Black 1.5 0.7 7.4 84 PP000922 3 White 0.75 0.6 6.7 68 PP000923 3 Black 0.75 0.6 6.7 68 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 15/05/15 V1.1
