PP000934 Pro Power

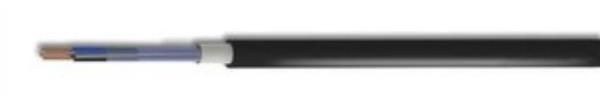

BS 5308 Part 1 Type 1 LSZH Screened Multipaired Instrumentation Cable Application: BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemical industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity or microphone. BS 5308 cables are designed to form part of an intrinsically safe system. Part 1 Type 1 cables are generally designed for indoor use and in environments where mechanical protection is not required. Collectively and individually screened pairs are available within the range where further signal security is required. Cable Standards: Made in accordance with the following: BS/PAS 5308, BS EN 60228, BS 6234, BS EN 50363, BS EN/IEC 60332-1, BS EN/IEC 60332-3-24 Construction: Conductor : Class 1 solid, Class 2 stranded or Class 5 flexible copper conductor according to BS EN 60228 (previously to BS 6360) Pairing : Two insulated conductors uniformly twisted together Insulation : XLPE (Cross-Linked Polyethylene) Type 03 according to BS 6234 Shielding : AL/PET (Aluminium/Polyester Tape) Drain Wire : Tinned copper Sheath : LSZH (Low Smoke Zero Halogen) Type LTS3 according to BS 7655 Characteristics: Voltage Rating (Uo/U) : 300/500V Temperature Rating : -30C to +90C (Fixed) Min. Bending Radius : 12 overall diameter (Fixed) Sheath Colour : Black Electrical Characteristics: Individually and Collectively Screened Cables Mutual Capacitance Nominal Cross Min Insulation Max. pF/m Sectional Area Resistance at 20C L/R Ratio Cables with Collective Cables with Individually 2 mm m/km H/ Screen Only Screened Pairs 0.5 75 115 >5 25 0.75 75 115 >5 25 1.5 85 120 >5 40 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 18/05/15 V1.1BS 5308 Part 1 Type 1 LSZH Screened Multipaired Instrumentation Cable Core Colours: Pair No. A Wire B Wire 1 Black Blue 2 Black Green Individually screened pairs will be number coded all with Pair 1 colouring Conductors: Nominal Cross Max. DC Resistance of Sectional Area Conductor Class Conductor at 20C 2 mm /km 0.5 5 39 0.75 5 26 1.5 2 12.1 Dimensions: Nominal Cross Nominal Overall No. of Part Number Sectional Area Diameter Pairs 2 mm mm PP000929 1P 0.5 7 PP000930 1P 0.75 7.4 PP000931 1P 1.5 8.3 PP000933 2P(Q) 0.5 7.9 PP000932 2P(Q) 0.75 8.4 PP000934 2P(Q) 0.75 8.4 P = Pairs Q = Quad Part Number Table Reel Length Description Part Number (m) PP000929 PP000930 BS 5308 Part 1 Type 1 LSZH PP000931 Screened Multipaired 50 PP000932 Instrumentation Cable PP000933 PP000934 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 18/05/15 V1.1
