PP000938 Pro Power

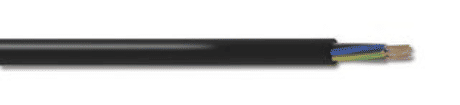

Defence Standard 61-12 Part 5 LSZH Screened Multicore Flexible Cable Application: These multicore flexible cables are designed for high density wiring between components within instruments and electronic equipment. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles and military equipment. The LSZH construction ensures enhanced performance in the event of fire reducing the emmision of smoke and toxic fumes making them a perfect solution for sensitive equipment areas. Cable Standards: Made in accordance with the following: Generally to Def Stan 61-12 Part 5, BS EN/IEC 60754-1 and 2 BS EN 50267-2-1 and 2, BS EN/IEC 61034-1 Construction: Conductor : Stranded tinned copper conductor Sizes : 16 strands/0.2 mm Insulation : LSZH (Low Smoke Zero Halogen) Tape : Mylar Drain Wire : Stranded tinned copper Screen : AL-foil Rip Cord : Nylon Sheath : LSZH (Low Smoke Zero Halogen) Characteristics: Voltage Rating : 440V r .m.s. at frequencies up to 1.6kHz Max. Resistance of Conductor at 20C : 16/0.2: 40.1/km Min. Bending Radius : 7.5 overall diameter (Fixed) Temperature Rating : -30C to +60C (Fixed) -15C to +60C (Flexed) Current Rating : 2.5 amps Sheath Colour : Black Core Identification: No. of Cores Core Identification 1 RED 2 BLUE 3 GREEN 4 YELLOW Base colours are indicated by capital letters www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 15/05/15 V1.1Defence Standard 61-12 Part 5 LSZH Screened Multicore Flexible Cable Dimensions: LSZH Insulated, Foil Screen, LSZH Sheath Nominal Overall Cable Identification No. of Nominal Weight Part Number Diameter Code Cores kg/km mm PP000937 16-2-2S 2 4.8 45 PP000938 16-2-4S 4 6.2 60 Part Number Table Reel Length Description Part Number (m) PP000937 Defence Standard 61-12 Part 5 LSZH 50 Screened Multicore Flexible Cable PP000938 Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 15/05/15 V1.1
