PP001546 Pro Power

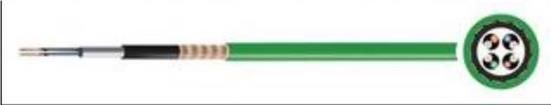

PUR Industrial Ethernet Cat7 Multipair Cable Application This multipair industrial ethernet Cat7 cable is suitable for Profinet Type B applications. Can be used in dry or damp rooms for plant engineering and machinery manufacturing. The rugged polyurethane sheath provides protection even in extreme indus- trial environments. Characteristics Voltage Rating : 125V Temperature Rating : Fixed: -40C to +80C Flexed: -20C to +70C Minimum Bending Radius : Fixed: 8 overall diameter Flexed: 12 overall diameter Cable Standards IEC 61156-6, IEC 60811-2-1 UK Laboratory Tested This product is subject to the Quality Assurance protocols of The Cable Lab, a UKAS accredited ISO 17025 cable testing laboratory. Testing includes vertical flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings. Regulatory Compliance This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and confirmed by The Cable Lab as meeting the requirements of the BSI RoHS Trusted TM Kitemark . Construction Conductor Stranded bare copper wires (AWG24/7) Insulation FPE (Polyethylene) Separator Tape PET (Polyester) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 14/03/18 V1.3PUR Industrial Ethernet Cat7 Multipair Cable Pair Shield AL/PET (Aluminium Polyester Tape) Braid TCWB (Tinned Copper Wire Braid) 90% coverage Sheath PUR compound (Thermoplastic Polyurethane) Pairs Identification White and Green White and Orange White and Blue White and Brown Sheath Colour Green Dimensions Nominal Diameter Nominal Overall Nominal No. of Nominal Conductor Diameter Insulation Diameter Weight 2 Pairs mm (AWG / strands) mm mm kg/km 4 0.22 (7 / 24) 1.43 8.5 94 Electrical Characteristics at 20C Max. DC Capacitance Min. Dielectric Strength Nominal Delay Conductor pF/km Insulation Impedance kV AC / 1 min Propagation Skew Resistance Resistance Velocity ns/100m Core/Core Unbalanced Core/Core Core/Shield /km Gkm 84 42 1600 5 100 75% 25 1.5 1 Attenua- Attenua- Next PS PS EI- PS EI- Return Return Fre- Next PS Next EI-FEXT EI-FEXT Min. PS ACR tion tion Typi- Next FEXT FEXT Loss Loss quency STD Typical STD Typical PS ACR Typical STD Typical cal STD STD Typical STD Typical MHz dB dB dB/100m dB/100m dB/100m dB/100m dB/100m dB/100m dB dB dB/100m dB/100m dB dB 1 3 2.1 80 >95 77 >95 78 >95 75 >95 74 92.9 - 28 4 5.6 3.8 80 >95 77 >95 78 >95 75 95 71.4 91.2 23.1 30 10 8.8 5.9 80 >95 77 >95 74 95 71 92 68.2 89.1 25 33 16 11.1 7.6 80 >95 77 >95 69.9 92 66.9 89 65.9 87.4 25 33 20 12.4 8.6 80 >95 77 95 68 88 65 85 64.6 86.4 25 33 31.25 15.6 10.8 80 95 77 92 64.1 82 61.1 79 61.4 81.2 23.3 33 62.5 22.3 15.3 75.5 93 72.5 90 58.1 77 55.1 75 50.2 74.7 20.7 30 100 28.5 19.8 72.4 91 69.4 88 54 70 51 67 40.9 68.2 19 28 125 32.1 22.5 70.9 90 -67.9 87 52.1 68 49.1 65 35.8 64.5 18.2 27 155.52 36 25.3 69.5 89 -66.5 86 50.2 64 47.2 61 30.5 60.7 17.3 25 200 41.2 28.8 67.9 88 64.9 85 48 58 45 55 23.7 56.2 16.4 25 250 46.5 32.2 66.4 86 63.4 83 47 55 43 52 16.9 50.8 15.6 23 350 55.8 38.3 64.2 84 61.2 81 43.1 49 40.1 46 5.4 42.7 15.6 22 500 67.9 46.8 61.9 83 58.9 80 40 47 37 44 - 33.2 15.6 21 600 75.1 51.7 60.7 81 57.7 78 38.4 44 35.4 41 - 26.3 15.6 20 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 14/03/18 V1.3
