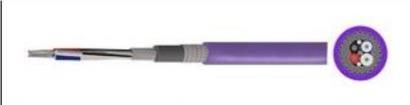

DeviceNet Thick FRNC-LSZH Multipair Cable Application This DeviceNet Thick multipair cable is suitable for fixed and occasional flexing indoor applications in CAN technologies. Con - nects industrial devices, motor starters and PLCs. Commonly used as trunk cables for industrial ethernet installations. Characteristics Max. Operating Voltage : 300V Temperature Rating : -30C to +80C Minimum Bending Radius : 15 overall diameter Cable Standards BS EN 50267-2-1, BS EN 50267-2-2, Flame Retardant according to IEC 60332-1-2 Low Smoke Density / Halogen free according to IEC 61034-2, IEC 60754-1/2 UK Laboratory Tested This product is subject to the Quality Assurance protocols of The Cable Lab, a UKAS accredited ISO 17025 cable testing laboratory. Testing includes vertical flame, conductor resistance, tensile & elongation, and dimensional consistency, verified to published standards and approved product drawings. Regulatory Compliance This cable meets the requirements of the Low Voltage Directive 2014/35/EU and the RoHS Directive 2011/65/EU. RoHS compliance has been tested and confirmed by The Cable Lab as meeting the requirements of the BSI RoHS Trusted TM Kitemark . Construction Conductor 2 Data Pair: Stranded tinned copper wires 18 19 AWG (0.25mm ) 2 Power Pair: Stranded tinned copper wires 15 19 AWG (0.35mm ) Insulation Data Pair: Foam-Skin Polyethylene Power Supply Pair: Solid Polyethylene www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 09/02/18 V1.2DeviceNet Thick FRNC-LSZH Multipair Cable Individual Pair Shield AL/PET (Aluminium/Polyester Tape) Drain Wire Tinner Copper Overall Shield TCWB (Tinned Copper Wire Braid) Separation PET (Polyester Tape) Sheath FRNC-LSZH (Fire Retardant Non-Corrosive Low Smoke Zero Halogen) compound Core Identification Data Pair: White and Blue Power Supply Pair: Black and Red Sheath Colour Violet Dimensions Nominal Cross Nominal Cross Sectional Nominal Diameter of Sectional Area of Area of Power Supply Nominal Coverage of Nominal Weight Outer Sheath Data Pair Conductor Pair Conductor Wire Braid kg/km mm 2 2 mm mm 0.93 1.93 65% 11.9 220 Electrical Characteristics at 20C DC Conductor Attenuation Data Pair Resistance Capacitance Impedance Dielectric Min. Transfer dB/100m /km at 800 Hz 1 MHz Strength Insulation Impedance Data Pair Data Pair kV AC / Resistance at 10 MHz Power AT AT AT nF/km 1min Gxkm m/m Data Supply 125 kHz 500 kHz 1 MHz Pair 23.2 11.3 40 120 0.4 0.8 1.25 2 5 15 Part Number Table Reel Description Part Number Length DeviceNet Thick 100m PP001548 FRNC-LSZH Multipair Cable Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell Limited 2016. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 09/02/18 V1.2
