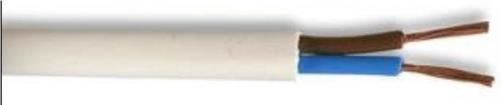

PP-2182Y-0.75MMWHT Pro Power

218-Y/H03VV-F BS EN 50525-2-11 Flexible Cable Application: Light duty cable for use in domestic premises, kitchens and offices. For use with light portable appliances such as radios, table lamps and office equipment. Cable Standards: BS EN 50525-2-11 (previously BS 6500, CENELEC HD21.5), VDE 281, BS EN/IEC 60332-1-2 Construction: Conductor : Class 5 flexible stranded copper conductor according to BS EN 60228 (previously BS 6360) Insulation : PVC (Polyvinyl Chloride) Type TI2 according to BS EN 50363 Sheath : PVC (Polyvinyl Chloride) Type TM2 according to BS EN 50363 Characteristics: Voltage Rating (Uo/U) : 300/300V Temperature Rating : Flexed: -5C to +70C Min. Bending Radius : Flexed: 6 overall diameter Core Identification : 2 core: Blue & Brown 3 core: Blue, Brown & Green/Yellow Sheath Colour : White Electrical Characteristics Current Carrying Capacity and Mass Supportable Current Carrying Capacity Nominal Cross Max. Mass Supportable by Twin Flexible Cord Sectional Area Single-Phase AC Three-Phase AC kg 2 mm Amps Amps 0.5 3 3 2 0.75 6 6 3 The above table is in accordance with Table 4F3B of the 17th Edition of IEE Wiring Regulations. Voltage Drop Nominal Cross DC or Single-Phase AC Three-Phase AC Sectional Area mV/A/m mV/A/m 2 mm 0.5 93 80 0.75 62 54 Conductor operating temperature: 60C The above table is in accordance with Table 4F3B of the 17th Edition of IEE Wiring Regulations. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 01/08/17 V1.2218-Y/H03VV-F BS EN 50525-2-11 Flexible Cable Conductors: Class 5 Flexible Stranded Copper Conductors for Multi-Core Cables Max. Diameter of Wires in Conductor Max. Resistance of Conductor at 20C Nominal Cross Sectional Area Plain Wires 2 mm mm /km 0.5 0.21 39 0.75 0.21 26 The above table is in accordance with BS EN 60228 (previously BS 6360) De-Rating Factors: 60C Thermoplastic or Thermosetting Insulated Cords Air Temperature 35C 40C 45C 50C 55C De-Rating Factor 0.91 0.82 0.71 0.58 0.41 Dimensions: Max. Nominal Nominal Nominal Nominal Cross Nominal No. of No. of Thickness of Thickness Overall Part Number Sectional Area Weight Cores Strands Insulation of Sheath Diameter 2 mm kg/km Strand Size mm mm mm PP-2182Y-0.75MMWHT 2 0.75 24 0.19mm 0.5 0.6 5.5 46 PP-2183Y-0.50MMWHT 3 0.5 16 0.19mm 0.5 0.6 5.3 44 PP-2183Y-0.75MMWHT 3 0.75 24 0.19mm 0.5 0.6 5.8 55 Part Number Table Reel Length Description Colour Part Number (m) PP-2182Y-0.75MMWHT 218-Y / H03VV-F BS EN 50525-2-11 White 100 PP-2183Y-0.50MMWHT Flexible Cable PP-2183Y-0.75MMWHT Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell Limited 2016. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 01/08/17 V1.2
