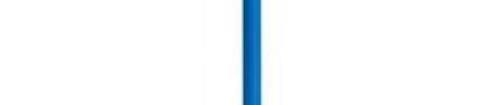

PP-3183Y-2.5MM-ARTIC BLUE Pro Power

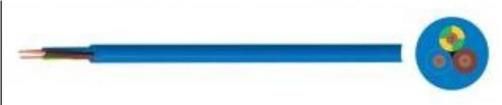

318-A / BS 6004 Flexible Arctic Grade Multicore Cable Application Arctic grade PVC multicore cable manufactured to BS 6004 are designed to withstand severe external temperatures and will remain flexible at temperatures down to -40C. Making them particularly suitable for outdoor applications and for use where flexibility is required at sub zero temperatures. At normal temperatures the cable is very flexible, offering some of the character - istics usually found in elastomeric cables. Characteristics Voltage Rating (Uo/U) 300/500V Temperature Rating Fixed: -40C to +60C Minimum Bending Radius Fixed: 6 x overall diameter Cable Standards BS 6004 (previously BS 7919 Table 44), BS EN/IEC 60332-1-2 Construction Conductor Class 5 flexible copper conductor according to BS EN 60228 (previously BS 6360) Insulation Arctic grade PVC (Polyvinyl Chloride) Type TI4 according to BS EN 50363 Sheath Arctic grade PVC (Polyvinyl Chloride) Type 10 according to BS 7655 Core Identification 3 core: Blue, Brown, Green/Yellow Sheath Colour Blue, Yellow Dimensions Nominal Nominal Nominal Nominal Cross Nominal No. of Thickness Thickness Overall Part Number Sectional Area Weight Cores of Insulation of Sheath Diameter mm kg/km mm mm mm PP-3183Y-1.5MM-ARTIC BLUE 3 1.5 0.7 0.9 8.1 105 PP-3183Y-1.5MM-ARTIC YELLOW 3 1.5 0.7 0.9 8.1 105 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 08/02/18 V1.0318-A / BS 6004 Flexible Arctic Grade Multicore Cable Nominal Nominal Nominal Nominal Cross Nominal No. of Thickness Thickness Overall Part Number Sectional Area Weight Cores of Insulation of Sheath Diameter mm kg/km mm mm mm PP-3183Y-2.5MM-ARTIC BLUE 3 2.5 0.8 1.1 10 163 PP-3183Y-2.5MM-ARTIC YELLOW 3 2.5 0.8 1.1 10 163 PP-3183Y-4MM-ARTIC BLUE 3 4 0.8 1.2 11.3 224 PP-3183Y-4MM-ARTIC YELLOW 3 4 0.8 1.2 11.3 224 Conductors Class 5 Flexible Copper Conductors for Single Core and Multi-Core Cables Nominal Cross Max. Diameter of Wires Max. Resistance of Conductor at 20C Sectional Area in Conductor Plain Wires mm mm / km 1.5 0.26 13.3 2.5 0.26 7.98 4 0.31 4.95 Electrical Characteristics Current Carrying Capacity Current Carrying Capacity At 30C Nominal Cross Sectional Area Single-Phase AC Three-Phase AC mm Amps Amps 1.5 16 16 2.5 25 20 4 32 25 Voltage Drop Nominal Cross DC or Single-Phase AC Three-Phase AC Sectional Area mV/A/m mV/A/m mm 1.5 32 27 2.5 19 16 4 12 10 Conductor operating temperature: 60C De-Rating Factors: 60C Thermoplastic or Thermosetting Insulated Cords Ambient Temperature 35C 40C 45C 50C 55C De-Rating Factor 0.91 0.82 0.71 0.58 0.41 www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 08/02/18 V1.0
