RG58BU PER M Pro Power

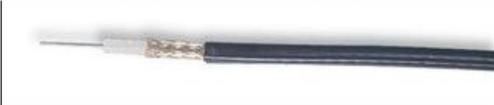

Coaxial Cable RG58BU Features: Solid polyethylene insulated 1/0.8mm copper clad steel conductor Braid screen Black PVC sheathed overall to MIL-C17D Continuous length in 1m multiples Specifications: Coaxial Cable Type : RG-58B/U Impedance : 50 Approval Bodies : MIL Spec Attenuation 100MHz : 1.7dB Attenuation 1GHz : 5.6dB Nominal Outside Diameter : 4.95mm Jacket Material : PE Cable Construction: Conductor : Copper Clad Steel : 0.813 Insulation : Solid P. E. : 2.95mm First braiding : Tinned Copper Wire Braid : 0.11 112mm Outer jacket : PVC : 4.95mm Cable Properties: Bending : Min. Bending Radius : Loaded : 20 times cable OD Unloaded : 10 times cable OD Tensile strength : Max. Pulling Tension : 126lbs Temperature : Operation : -20 to +75C Installation : 0 to +60C Electrical Characteristics: Parameter Unit Value Capacitance : 100pF/m Max. Voltage : 15kV DC Max. RF Working Voltage : 2.5kV peak Nominal Velocity of Propagation : 66% Nominal Conductor Resistance at 20/km : 156 Nominal Shield Resistance at 20/km : 15 Structural Return loss (100 - 1000MHz) : >18dB Sparker : 4,000V AC Dielectric Strength : 2,500V AC www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 19/11/12 V1.0Coaxial Cable RG58BU Attenuation dB/100m: Frequency Max. Attenuation 1MHz 1.44 10MHz 4.6 50MHz 10.8 100MHz 16 400MHz 37.7 700MHz 55.8 900MHz 65.6 1,000MHz 60 Part Number Table Description Part Number Cable, Coaxial, RG58BU RG58BU PER M Important Notice : This data sheet and its contents (the Information) belong to the members of the Premier Farnell group of companies (the Group) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Groups liability for death or personal injury resulting from its negligence. pro - POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 19/11/12 V1.0
