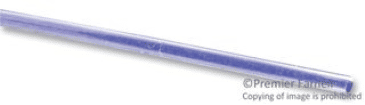

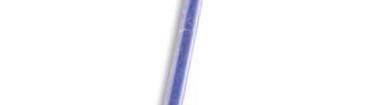

Heat Shrink Tubings RKT Series Features: High temperature and fluid resistant, extra tough, semi-rigid heat-shrinkable tubing Excellent chemical resistance, excellent abrasion resistance, 2:1 shrink ratio It is an extremely tough, high temperature, thin wall insulation tubing. This transparent non-burning, semi-rigid tubing has superior resistance to most industrial fuels, solvents and chemicals. Designed for applications requiring strain relief at temperatures up to 175C, this product is unusually tough in its resistance to abrasion and cut-through. Typical applications include high temperature applications, protection, strain relief, chemical resistance, mechanical and abrasion protection. Specifications: Operating Temperature Range : -55C to +175C Minimum Shrink Temperature : +155C Minimum Full Recovery Temperature : +175C Performance Test Test Method Test Requirement IEC 60684 - 2 Clause 39 Minimum Tensile Strength : 15 MPa Heat Ageing (168 Hours at 200C) Minimum Elongation : 75% IEC 60684 - 2 Clause 33 Corrosion Resistance No Corrosion of Mirrors (16 Hours at 175C) Breakdown Voltage IEC 60684 - 2 Clause 21 - IEC 60684 - 2 Clause 26 15 s Maximum Flame Propagation Method C UL224 VW1 Minimum Tensile Strength : 25 MPa Fluid Resistance IEC 60684 - 2 Clause 36 Minimum Ultimate Elongation : 150% Aircraft Fuel to ISO1817 Liquid F (70C) Test Fluids Phosphate Ester ISO1817 Liquid 103 (23C) Lubricating Oil ISO1817 Liquid 101 (70C) www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <1> 21/04/12 V1.0Heat Shrink Tubings RKT Series Specification Table Inside Diameter Wall Thickness Size Length Minimum Maximum Nominal Part Number (Inches) (m) Expanded as Recovered After Recovered After Supplied (D) Heating (d) Heating (W) 3/64 1.2 0.6 RKT-3/64-X-4FT 0.25 1/16 1.6 0.8 RKT-1/16-X-4FT 3/32 2.4 1.2 RKT-3/32-X-4FT 1/8 3.2 1.6 0.27 RKT-1/8-X-4FT 3/16 4.8 2.4 RKT-3/16-X-4FT 1.2 1/4 6.4 3.2 RKT-1/4-X-4FT 3/8 9.5 4.8 0.33 RKT-3/8-X-4FT 1/2 12.7 6.4 RKT-1/2-X-4FT 3/4 19 9.5 0.43 RKT-3/4-X-4FT 1 25.4 12.7 0.48 RKT-1-X-4FT Dimensions : Millimetres (Unless Specified) Part Number Explanation: RKT 3/64 X Series Size Colour Code Colour Code : X = Clear Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk Page <2> 21/04/12 V1.0
