YE01962+00B100 Pro Power

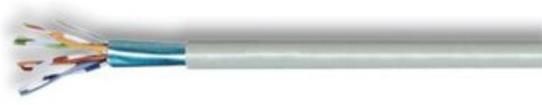

Cat5e Cable Applications Work area cable. Support current and future Category 5e applications, such as : 1,000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, FDDI, ATM. General standards International standard : ISO/IEC 11801 2nd edition (2002) and ISO/IEC 11801 Amendment 2 (2010) European standard : EN 50173-1 (2002) and EN 50173-1 Amendment 1 (2009) U.S. Standards : ANSI/TIA/EIA 568-B.2-1 (2002) Construction and Dimensions 1. Conductor Material : Stranded bare copper ETP. Diameter : AWG 26 (7 AWG 34). 2. Insulation Material : Polyethylene. Nominal diameter over insulation : 0.95 mm. 3. Cable core Pair : 2 twisted insulated conductors. Number of pairs : 4, all twisted together. Colour code pair 1 : White / Blue and Blue. Colour code pair 2 : White / Orange and Orange. Colour code pair 3 : White / Green and Green. Colour code pair 4 : White / Brown and Brown. Foil : Overlapping polyester foil over cable core. Cat5e Cable 4. Foil shielding Material : Laminated Aluminium / Polyester. Position aluminium : Facing outside, in contact with drain wire. Drain wire material : Stranded tinned copper. Drain wire diameter : AWG 26 (7 AWG 34). 5. Jacket Material : PVC. Diameter : 5.2 0.2 mm. Colour : Grey (RAL 7032). Electrical characteristics Low frequency and D.C. (at 20C) Specification Unit D.C. resistance conductor < 14.5 /100m Resistance unbalance: within a pair / between pairs < 2/< 4 % Insulation resistance 5,000 M. km Dielectric strength conductor-conductor and conductor-screen (2 seconds) 2.5 kV DC Mutual capacitance < 56 nF/km Capacitance unbalance pair to ground < 1,600 pF/km Nominal velocity of propagation (for information only) > 0.6 c Delay skew (differential delay) 40 ns/100m Transfer impedance according IEC 61156-5 Grade 2 Coupling attenuation according IEC 61156-5 Type II High frequency (at 20) Type 1* 4 10 16 20 31.25 62.5 100 MHz Attenuation 3.2 6 9.5 12.1 13.5 17.1 24.8 32 Next 65.3 56.3 50.3 47.2 45.8 42.9 38.4 35.3 PS Next 62.3 53.3 47.3 44.2 42.8 39.9 35.4 32.3 ACR 62.1 50.3 40.8 35.2 32.2 25.8 13.6 3.3 PS ACR 59.1 47.3 37.8 32.2 29.2 22.8 10.6 0.3 dB/100m ACR-F 64 52 44 39.9 38 34.1 28.1 24 PS ACR-F 61 49 41 36.9 35 31.5 25.1 21 Return loss 20 23 25 25 25 23.3 20.7 19 TCI level 1 40 34 30 28 27 25.1 22 20 EL TCTL 35 23 15 10.9 9 5.5 Impedance upper limit 122.2 115.2 111.9 111.9 111.9 114.6 120.2 125.3 Impedance lower limit 81.8 86.8 89.4 89.4 89.4 87.2 83.2 79.8 Propagation delay 570 552 545 543 540 539 538 537 ns/100m Note : Limits below 4MHz are for information only.
