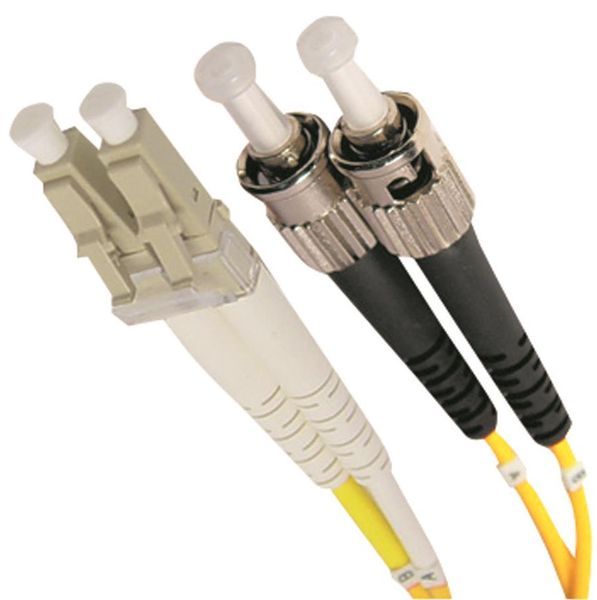

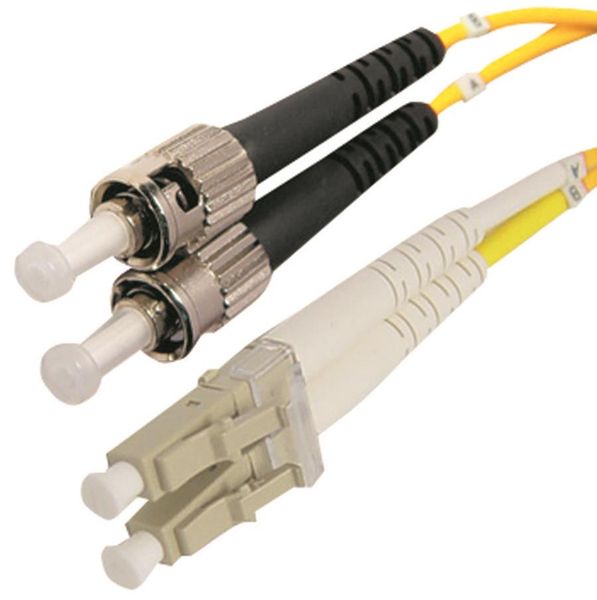

Duplex Fiber Optic Patch Cords Dimensions : Millimetres Notes: Insertion Loss : 0.2 dB Typical (1,300 nm) 0.3dB maximum Return Loss : > = 55 dB (1,310 nm) Specification Table No Item Description Unless otherwise specified dimension tolerances are Optical Fiber, Single-mode, 9 / 125, Duplex, 2 mm, 1 Cable Tight, Yellow, PVC Jacket Decimals: 2 Connector ST, Duplex, Single-Mode, Yellow Boots .X 0.05 3 Connector LC, Duplex, Single-Mode, Blue Housing, White Boots .XX 0.01 .XXX 0.005 4 Tubing Heat Shrink Sleeve, Yellow 5 Tubing Heat Shrink Sleeve, White Angular : 0.5 6 Heat Shrink Tube Colour = Black Part Number Table Description Length Part Number Duplex Fiber Optic Patch Cord 1m SPC23043 Duplex Fiber Optic Patch Cord 2 m SPC23044 Duplex Fiber Optic Patch Cord 3 m SPC23045 Duplex Fiber Optic Patch Cord 5 m SPC23046 Duplex Fiber Optic Patch Cord 10 m SPC23047 Duplex Fiber Optic Patch Cord 15 m SPC34303 Duplex Fiber Optic Patch Cord 20 m SPC34304 Important Notice : This data sheet and its contents (theInformatio) belong to the members of the Premier Farnell group of companies (theGrou) or are licensed to it. No licence is granted for the use of it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted. Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict the Group s liability for death or personal injury resulting from its negligence. pro-SIGNAL is the registered trademark of the Group. Premier Farnell plc 2012. www.element14.com www.farnell.com www.newark.com www.cpc.co.uk 16/01/12 V1.1X-ON Electronics Authorized Distributor Click to view similar products for Pro Signal manufacturer. Other Similar products are found below : JR803025M SPC23168 PSG01325 PSG90957 PSG90815 PSG01569 PS11208 PS11185 PS11360 PS11060 PSG90809 PSG90813 PSG04068 PSG00282 FV023HLBNY303 PSG01336 PSG90961 PSG90812 PSG01501 PS11386 PS11160 PS11161 PS11165 PS11306 PS11095
