HIRK-433AP

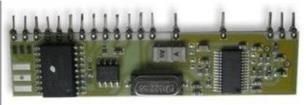

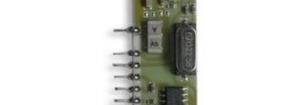

HIRK-315 HIRK-433 RF RECEIVER DECODER HYBRID. HIR6-433 Features Miniature RF Receiver and Decoder. Advanced Keeloq Decoding Advanced Laser Trimmed Ceramic Module AM Range up to 100 Metres FM Range up to 150 Metres Easy Learn Transmitter Feature. Outputs, Momentary or Latching & Serial Data. Direct Led Drive Shows Data Reception Single Supply 5V Flash re-programmable HIR6 Low Power Version (<1mA) Directly compatible with 110 Series Compatible with RF600E EMC Compliant for use in Europe FCC Certified for use in USA Applications Remote Switching. General Remote Control Systems. Remote Gates. Garage Door Openers. Paging. Car, Caravan, Motorcycle Alarms Description A range of miniature single in line (SIL) hybrid modules providing complete four channel Radio Receiver/Decoder systems available in either AM or FM. When used with the 110-AM or 120-FM series pocket keyfobs a complete remote telemetry system is obtained with up to 150 metres range. The module consists of a front end super-heterodyne or super-regen RF receiver with an embedded microcontroller decoding a highly secure Keeloq protocol signal. The module has an easy-to-use LEARN facility, and is capable of learning up to 50 unique keyfob encoders. The module requires a 5V power supply and provides a direct LED drive showing data reception and four digital data outputs. The outputs may be programmed for momentary or latching configuration. The modules have flash re-programmability feature to enable field re-programming of the controller. Part Numbers Part Number Description Compatible Transmitters HiRK-315A Superhetrodyne Receiver Decoder AM 315MHz 110 Series transmitter Superhetrodyne Receiver Decoder AM 433MHz HiRK-433A keyfobs or 102 A Series transmitters HiR6-433A SuperRegenerative Low Power Rx Decoder AM 433MHz 120 Series transmitters Low Power Rx Decoder FM 433MHz HIRK-433F 102 F series transmitters DS010-6 May 06 2006 REG No 277 4001, England. Page 1 HIRK-315 HIRK-433 RF RECEIVER DECODER HYBRID. HIR6-433 HiRK Versions This range of modules provides a high sensitivity and selective Superhetrodyne receiver, combined with flash programmable controller, supplied pre-programmed to operate with a suitable Keeloq Transmitter encoder. The range from such a system can be up to 150 metres Lin of Sight (LOS). Custom versions of this product are available, please contact our sales department for further details Pin Descriptions Superhetrodyne Versions (HiRK series) Pin No Name Description 1 Vcc-RF +5V Supply Voltage RF section 2 GND-RF RF Ground 3 ANT Connect Antenna to this input 7 GND-RF RF Ground AF Ground 11 GND-AF 13 RSSI Received Signal Strength Indicator (RSSI) 14 O/P-AF Raw Data output from RF receiver (CMOS/TTL signal) 15 Vcc-digital +5V Supply Voltage digital section Digital Ground 16 Vdd-digital Pulls Microcontroller into reset if connected to Ground 17 MCLR** May be left unconnected if not required (internally tied high) 18 Link2 Connect to GND to make link, may be left O/C if not required 19 Link1 Connect to GND to make link, may be left O/C if not required Programming Switch input. Used when learning new transmitters and erasing data. 20 PSW External LED sink output, can be connected directly to cathode of external LED. 21 LED Connect Anode of the LED directly to +5V. Indicates Data reception, and programming status. 22 O/P2 Active High data Output 2 (has a 220 series resistor) 23 O/P3 Active High data Output 3 (has a 220 series resistor) Active High data Output 4 (has a 220 series resistor) or Battery Low Output: Indicates when the transmitter battery is low voltage (Output is high when battery low) 24 O/P4 Serial Data Output: Outputs the Serial ID of transmitter encoder. Please see RF600 for serial data format and timings 25 O/P1 Active High data Output 1 (has a 220 series resistor) Compatibility with older versions of this module ** AM-HiRK: To remain compatible with previous versions of the product, this pin may be removed and ignored. AM-HiRH : Please contact sales for part HiRK-433P534 DS010-6 May 06 2006 REG No 277 4001, England. Page 2
