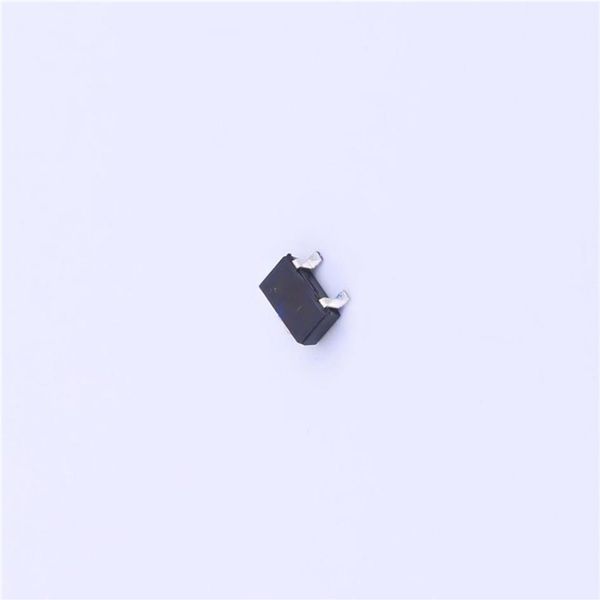

DTC123TKA Datasheet NPN 100mA 50V Digital Transistors (Bias Resistor Built-in Transistors) llOutline Parameter Value SMT3 V 50V CEO I 100mA C R 2.2k 1 SOT-346(SC-59) llFeatures llInner circuit 1) Built-In Biasing Resistor 2) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit) . 3) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of completely eliminating parasitic effects. 4) Only the on/off conditions need to be set for operation, making the circuit design easy. B: BASE 5) Lead Free/RoHS Compliant. C: COLLECTOR E: EMITTER llApplication Switching circuit, Inverter circuit, Interface circuit, Driver circuit llPackaging specifications Basic Package Taping Reel size Tape width Part No. Package ordering Marking size code (mm) (mm) unit.(pcs) DTC123TKA SMT3 2928 T146 180 8 3000 02 www.rohm.com 1/4 20121023 - Rev.001 2012 ROHM Co., Ltd. All rights reserved. Not Recommended for New Designs DTC123TKA Datasheet llAbsolute maximum ratings (T = 25C) a Parameter Symbol Values Unit Collector-base voltage V 50 V CBO V Collector-emitter voltage 50 V CEO V Emitter-base voltage 5 V EBO I Collector current 100 mA C *1 P Power dissipation 200 mW/Total D T Junction temperature 150 j Range of storage temperature T -55 to +150 stg llElectrical characteristics (T = 25C) a Values Parameter Symbol Conditions Unit Min. Typ. Max. Collector-base breakdown BV I = 50A 50 - - V CBO C voltage Collector-emitter breakdown BV I = 1mA 50 - - V CEO C voltage BV Emitter-base breakdown voltage I = 50A 5 - - V EBO E I V = 50V Collector cut-off current - - 0.5 A CBO CB I Emitter cut-off current V = 4V - - 0.5 A EBO EB Collector-emitter saturation voltage V I / I = 5mA / 0.25mA - - 0.3 V CE(sat) C B h DC current gain V = 5V, I = 1mA 100 250 600 - FE CE C R Input resistance - 1.54 2.2 2.86 k 1 V = 10V, I = -5mA, CE E *2 f Transition frequency - 250 - MHz T f = 100MHz *1 Each terminal mounted on a reference footprint *2 Characteristics of built-in transistor www.rohm.com 2012 ROHM Co., Ltd. All rights reserved. 2/4 20121023 - Rev.001 Not Recommended for New Designs
