BNS33-11ZG-3M Schmersal

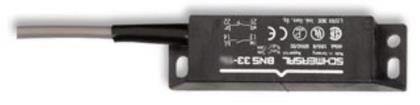

15.09.2015 - 12:19:54h Datasheet - BNS 33-11ZG Safety sensors / BNS 33 Preferred typ LED version Thermoplastic enclosure Concealed mounting possible Insensitive to transverse misalignment 88 mm x 25 mm x 13 mm (Minor differences between the printed image and the original product may Long life exist ) no mechanical wear Insensitive to soiling AS-Interface Safety at Work available Ordering details Product type description BNS 33-11ZG Article number 101109210 EAN code 4030661026480 eCl ss 27-27-24-02 Approval Approval BG USA/CAN Classification Standards EN ISO 13849-1 B10d Opener/Normally open contact (NC/NO) 25.000.000 - notice at max. 20% contact load Mission time 20 Years notice Global Properties Product name BNS 33 Standards IEC 60947-5-3, BG-GS-ET-14 Compliance with the Directives (Y/N) Yes Materials - Material of the housings Plastic, glass-fibre reinforced thermoplastic - Material of the cable mantle PVC Weight 65 g Monitoring function of downstream devices (Y/N) No Prerequisite evaluation unit YesRecommended safety-monitoring module Recommended actuator BPS 33, BPS 33-2326 Mechanical data Design of electrical connection Cable Cable length 1 m -10 m Conductors 0,25 mm AWG-Number 23 mechanical installation conditions not flush Active area Side Ensured switch distance ON 5 mm / 8 mm - BPS 33 = 5 mm Actuating magnet - BPS 33-2326 = 8 mm Actuating magnet Ensured switch distance OFF 15 mm / 18 mm - BPS 33-2326 = 18 mm Actuating magnet - BPS 33 = 15 mm Actuating magnet Repeat accuracy R 0,1 x Type of actuation Magnet Direction of motion head-on with regard to the active surface restistance to shock 30 g / 11 ms Resistance to vibration 10 55 Hz, Amplitude 1 mm Ambient conditions Ambient temperature - Min. environmental temperature 25 C - Max. environmental temperature +70 C Storage and transport temperature - Min. Storage and transport temperature 25 C - Max. Storage and transport temperature +70 C Protection class IP67 Electrical data Integrated Safety monitoring module available (Y/N) No Cross circuit/short circuit recognition possible (Y/N) Yes Voltage type VDC Switch frequency max. 5 Hz Switching voltage max. 24 VDC Switching current max. 10 mA Switching capacity max. 240 mW Outputs Design of control output Other, Reed contakts Number of shutters 1 piece Number of openers 1 piece Electrical data - Safety outputs Number of secure semi-conductor outputs 0 piece Number of secure outputs with contact 0 piece
