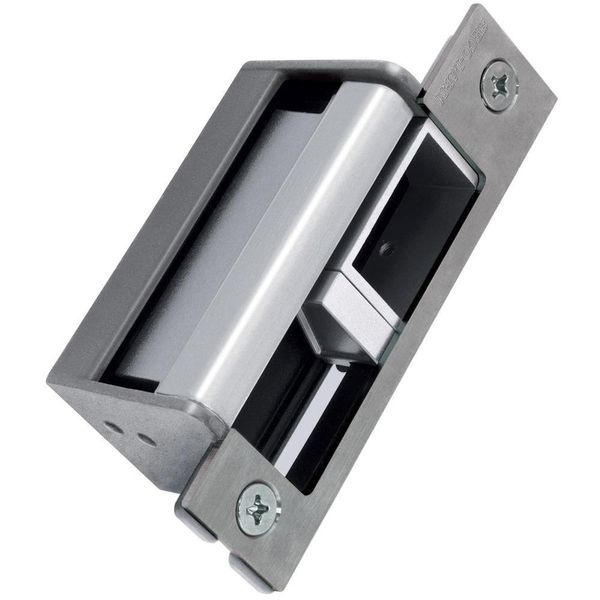

SD-996C-NUVQ Electric Door Strike with Vertical Adjustment Manual 43RG Features: 12/24 VDC Operation Static strength 1,000 lbs. (454kg) Vertical adjustable deadbolt opening, sliding Tested to 250,000 cycles (UL Tested) shim keeper, and deadlatch ramp Low current draw: 300mA 12VDC & accommodates a wide range of lock types 150mA 24VDC Accommodates deadbolts up to 1 The SD-996C-NUVQ is intended to be used with Field selectable for fail-safe or fail-secure UL Listed Exit Hardware Includes 5 different stainless-steel faceplates The SD-996C-NUVQ shall not impair the intended operation of an emergency exit Includes trim plate to hide gaps in installation The SD-996C-NUVQ shall not impair the operation Reversible non-handed design fits either of panic hardware mounted on the door right-hand or left-handed doors Indoor Use Only SECO-LARM Electric Door Strike with Vertical Adjustment Introduction: The SECO-LARM SD-996C-NUVQ Electric Door Strike with Vertical Adjustment is compatible with a wide range of lock types including cylindrical, mortise, and mortise exit devices and can be configured for use in wood, aluminum, or metal doors. Included are various ANSI-sized faceplates that can be easily installed on the strike to match the door lock type and the strike is easily field-configurable for fail-safe or fail-secure applications. Specifications: Model SD-996C-NUVQ Operating voltage 12/24 VDC 12VDC 300mA Current draw 24VDC 150mA Operating temperature 14~113 F (-10~45 C) Operating humidity 0~85% Static strength 1,000 lbs. (454kg) Dynamic strength 33 ft-lbs. (4.56 m-kgs) 1 Latch throw 1 (25mm) max with / (3mm) door gap 8 13 5 5 Dimensions 1 /x1 /x3 / (47x42x84 mm) 16 8 16 Parts List: 1x Door strike 5x Faceplates 1x Mounting template 2x Electrical connectors 2x Crimp connectors 2x Mounting tabs 1x Trim plate 2x Trim plate screws 2x Wood screws 6x Machine screws 2x Faceplate screws 2x Self-tapping screws Note: Not all parts will be used in every installation. Quick Installation: 1. Select the type of faceplate that will be used. See Sample Installations, on page 5. If the door is pre-cut for a strike, skip to step 6. 2. Measure and mark the door latch line and the center line of the door. See Measuring the Latch Line & Center Lines, page 3. 3. Apply the included stick-on template to the door frame. See Mounting the Template, page 3. 4. Prepare the door frame for installation and mount the trim plate if needed. See Preparing the Door Frame and Mounting the Trim Plate, page 4. 5. If the door frame material is unsuitable for mounting the strike directly, use the included mounting tabs for installation. This is recommended for aluminum door frames. See Mounting the Strike Using Mounting Tabs, page 4. 6. Program for either fail-safe or fail-secure operation. See Selecting Fail-Secure or Fail-Safe, page 6. 7. Connect power and complete installation to frame. See Wiring Diagram, page 6. 8. Adjust the keeper if needed to correct for any installation problems, page 7. 2 SECO-LARM U.S.A., Inc.
