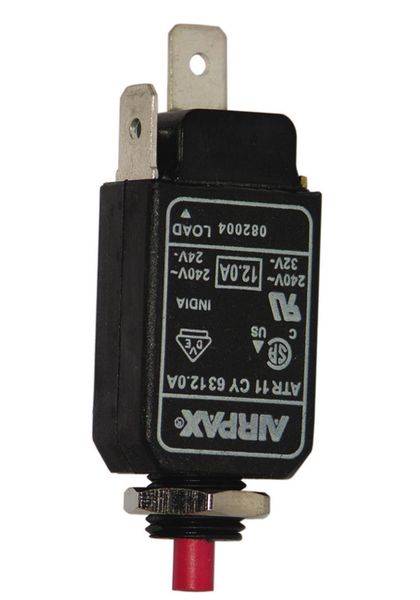

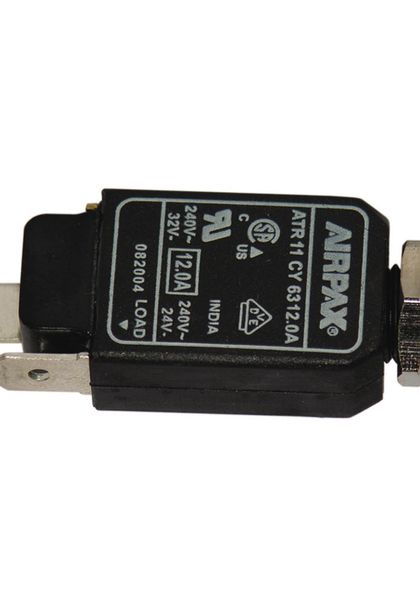

ta R11 Series Thermal Circuit Protector for Equipment featUReS RoHS compliant, single pole, thermal current overload protector Protection range and operating voltage: Reliable, trip-free operation on current overloads 0.1 to 16.0 Amps, 240 VAC, 50 VDC (cUus,cCSAus) Warranty: 24-months from date of manufacture 0.5 to 12 Amps, 240 VAC, 24 VDC (VDE) DeScRiption The Airpax ATR11 product family is a single pole, thermally operated overload protector with a snap-acting trip mechanism that provides reliable, trip-free operation on current overloads. The ATR11 series is designed with multiple mounting configurations including central nut, wing clip, snap-in, integral and PC board mounting. SpecificationS Current Ratings 0.1 to 16 amps, standard ratings available Voltage Ratings 240 VAC, 50/60 Hz, 50 VDC, 24 VDC (VDE) Max Breaking Capacity 8x I for < 6A, 60A max. > 6A n Conditional Short Circuit Capacity 1KA, PC1, 240Vac 24Vdc ref: EN60934, SC: 1KA, C1 240Vac 50Vdc ref: CSA22.2 No. 235.04, UL-1077 Tripping Current Code (TC) TC2 ref: CSA22.2, No. 234-04 Insulation Resistance Min 100 M 500VDC Dielectric Strength 1,500 VAC for 1 min. Operational Life 1000 Cycles 2 x I n Overload Rating OL0 240Vac, 50Vdc, ref: CSA22.2, No. 235-04 Overload Switching Capacity 6x I AC Up to 9A, 4x In DC Up to 12A n 60A Max. from 10A to 12A Max Operating Temperature 60C (140F) Ambient Application Type General Industrial ref: CSA22.2, No. 235-04 Method of Tripping Thermal TO, trip-free Type of Actuation Reset type R 302 ATR11 Series SHUnt teRMinaL (option n) Available on units of up to 6 amps equipped with a heater winding, an optional additional terminal can be provided as a parallel circuit to the main current-sensing circuit. The shunt circuit between terminals 1 and 3 may be used for any signal that may be required in addition to the main circuit. However, since the circuit makes use of the bimetal strip as a current-carrying path, the trip time of the circuit protector may be slightly influenced. tiMe / cURRent cHaRacteRiSticS The standard characteristic is valid for an ambient temperature of 23C. However, if the device is to be used in an ambient temperature other than 23C, an allowance must be made when selecting the current rating. See the chart, graph and example below to help determine the right circuit protector rating for your application. aMbient teMpeRta URe coRRection factoR Ambient Temperature (C) - 20 - 5 0 + 10 + 20 + 30 + 40 + 50 + 60 Multiplication Factor 0.8 0.88 0.9 0.96 1 1.05 1.12 1.2 1.3 Example : Operating Characteristics : Normal Continuous Current = 1.8 A (min) 60 Ambient Temperature = 40C 30 20 Multiplication Factor = 1.12 (from graph) 10 5 Recommended Rating: 1.8 x 1.12 = 2.016 Select the Nearest Rating = 2 amps 1 (S) 50 20 10 5 2 1 0.5 0.2 0.1 1.05 1.32 2 3 4 5 8 10 Multiple of Current Rating (x I ) n Rated Current < 6A 6A Ambient 23C Temperature
