IAR/IUR/IER/CUR/CER Series
1U, 1RU Magnetic Circuit Protectors
Introduction 43
Poles & Terminals 44
Configurations 47
Delay Curves & Specifications 48
Operating Characteristics 49
Hardware 50
Decision Tables 51IAR/IUR/IER/CUR/CER Series
1U, 1RU Hydraulic Magnetic Circuit Protectors
FEATURES
UL1077, TV, UL489A approved Series or mid-trip with auxiliary switch alarm options
Designed to fit in a 1RU application Various delays including motor start
5000 AIC (80VDC), 2000 AIC (250VAC) interrupt capacity 1 to 2 poles, multiple termination options
INTRODUCTION

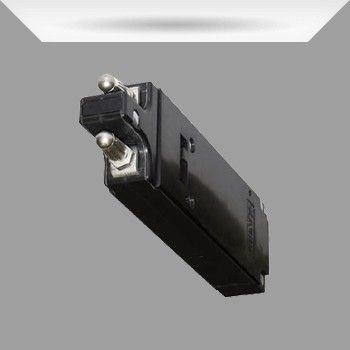

The Airpax IAR/IUR/IER/CUR/CER series is a snap-acting hydraulic-magnetic circuit breaker / protector that combines power
switching and accurate, reliable circuit protection in one aesthetically pleasing, 1U or 1RU sized package.
Designed for rack mount applications, the IAR/IUR/IER/CUR/CER series allows efficient use of rack space without sacrificing
performance via proven hydraulic-magnetic technology that provides consistent operation from -40C to 85C, with a circuit interrupt
capacity up to 5,000 AIC at 80VDC and 2,000 AIC at 250VAC. Available in series trip and mid-trip configurations, with auxiliary alarm
switch options to provide monitoring of critical circuits.
The CER series circuit breaker provides the necessary ratings for wireless and wired applications while meeting UL489A and TV
requirements for approval.
APPROVALS
Ratings Voltage A.I.C. Agency Approvals Poles
2 to 65 amps 80VDC 5,000 UL489A, TV EN60947-2 & C-UL 1
2 to 50 amps 80VDC 5,000 UL1077, TV EN60943 & C-UL 2
2 to 50 amps 250VAC 2,000 UL1077, TV EN60943 & C-UL 2
