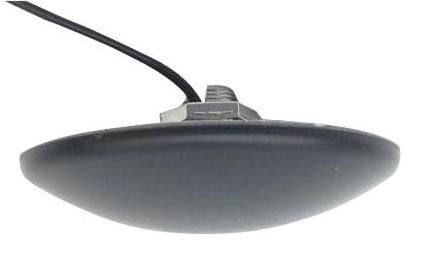

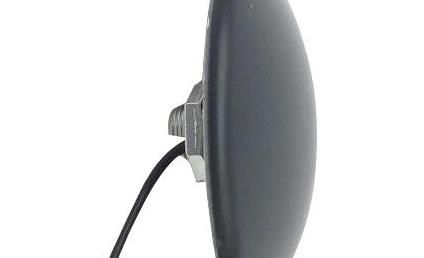

Tango 15 Low Profile, GSM/GPS Combined Antenna Key Features Combined GSM & GPS Functionality Quad Band GSM/GPRS & 3G Screw/Through-Hole Mount Antenna GSM Gain 2.5dBi GPS LNA Gain 25dB Additional Considerations General Description The Tango 15s are a Low profile, robust and vandal proof Compatible worldwide with any range of antennas suitable for outdoor equipment like cellular GSM application vending machines, traffic light systems and also automotive Perfect for covert applications and many other types of GPS tracking applications. The Vandal resistant Tango 15 is 95mm in diameter and only 18mm high. Dual mounting adhesive and screw mount It is IP65 rated, comes with double sided sticky pad shaped to the antenna and forms a good seal between antenna and the equipment it is mounted to. The Tango 15 is designed for covert applications where the user wishes to keep their antenna out of sight from unwanted eyes. Operating on GSM & 3G, the Tango 15 works well with various kinds of telemetry equipment, such as Sirettas Zeta and the Zoom terminal series. This antenna combines an active GPS antenna with an LNA (Low Noise Amplifier) so it can be used with GPS applications as well as cellular. Its bolt through base allows the antenna to be securely fixed to the roof of vehicles and its IP65 rating makes it more than suitable for the outdoors. With an M12 bolt it can be used with a mounting hole of between 13-20mm. The Tango 15 is a solidly made antenna to last for years and is available with various lengths of cable and connector types. Rev 1.0 Siretta is a division of Sequoia Technology Group Ltd Siretta sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 Registered in England No. 4004881 Spencers Wood email info siretta.co.uk VAT Registration No. GB614 5653 45 Reading web www.siretta.co.uk Berkshire RG7 1PW Tango 15 Low Profile, GSM/GPS Combined Antenna Key Specifications - Electrical Key Specifications - Mechanical Temperature range: -40 to +85C Dimensions: 95 x18mm Impedance: 50ohm Cable: RG174 1m/3m VSWR: <2.0:1 Connector: SMA, TNC, FME BNC, N type as required Average GSM Gain 2.5dBi GPS (LNA) Gain 25dB Voltage and supply 3 - 5V DC current: 25mA typical Operating GSM/GPRS 890-960 /1710-1880MHz frequency: 3G 2100MHz GPS 1575.42MHz Polarisation: GSM Vertical / GPS RHCP Dimensions Rev 1.0 Siretta is a division of Sequoia Technology Group Ltd Siretta sales +44(0)118 976 9014 Basingstoke Road fax +44(0)118 976 9020 Registered in England No. 4004881 Spencers Wood email info siretta.co.uk VAT Registration No. GB614 5653 45 Reading web www.siretta.co.uk Berkshire RG7 1PW
