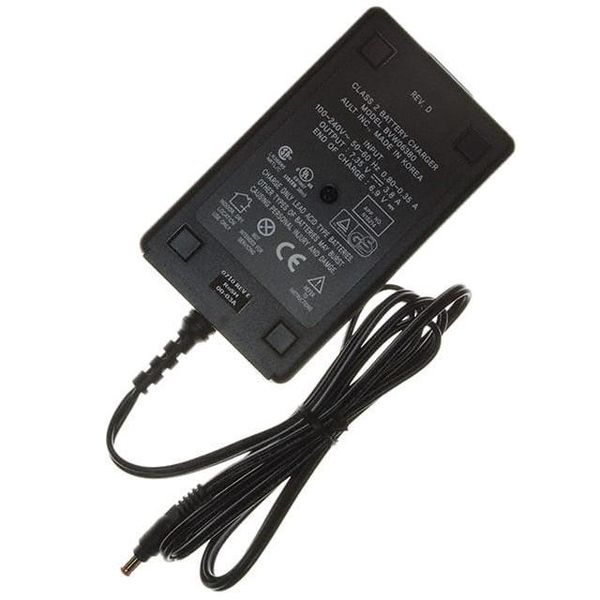

BVW Lead Acid Fast Chargers Features 100-240 VAC In Case IEC 320 Automatic Fast/Float Function LED Indicators Charges Lead Acid Batteries Optimizes Battery Life Meets Safety Agency Requirements Complies with EMI-RFI Regulations Impact Resistant Polycarbonate Enclosure Private Label Marking Available 3 Year Warranty Modified and Custom Designs Also Available Battery Output Switchover Fast Charge Float Charge Maximum Ault Model Voltage DC Amps Amps Volts DC Volts DC Watts BVW-06380-0003A 6 3.80 0.205 7.35 6.90 28 BVW-12225-0003A 12 2.25 0.165 14.70 13.80 33 BVW-24125-0003A 24 1.25 0.120 29.40 27.60 37 Input Voltage 100-250 VAC -10%, +6% LED Indicators Line Frequency 47 - 63 Hz Indicator 1 On (unit energized) Current 0.80A - 0.35A (Lower current (Green) Off (unit de-energized) with higher voltage) Indicator 2 On (battery discharged) Protection Internal primary current fuse Amber) Off (battery charged Inrush limiting Environment Configuration In Case IEC320 with ground Operating 5 to 40 C with no derating Electrical Temperature Topology Switching - DC battery charger Storage -30 to +85 C Dielectric 3000 VAC, 4243 VDC primary- Temperature Withstand secondary Relative Humidity 5% to 95% non-condensing 1500 VAC, 2150 VDC primary- Altitude 0-10,000 feet ground Cooling Convectional - non vented case 500 DC secondary-ground Mechanical Leakage Current Less than 0.5mA Case Dimensions LP7 - Desktop change typical 5.08 L x 3.05 W x 1.59 H (in) EMI Complies with EMC Directives 129 L x 77 W x 40 H (mm) CE CE Compliant Case Material Black 94V0 polycarbonate MTBF 100,000 calculated hours Weight 13 ounces, 370 grams Protection Foldback overcurrent. (excluding cord) Short circuit protection Cords and 6 ft., 2 conductor, 18 AWG, Ault Safety Approvals Connectors 3 connector. Other connectors Agency Listings CSA223 NRTL/C are also available. (ANSI/UL1310) TUV TO EN60065 THREE YEAR WARRANTY Ault Incorporated, 7105 Northland Terrace, Minneapolis, MN 55428 Contact Ault Inc. for all your custom design requirements. Phone: 763.592.1900 Fax 763.592.1911
