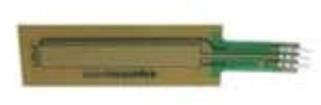

HP-L-0300-103-1%-RH Spectra Symbol

Features - High Life Cycle - High Temperature Capability - Linear Position Sensor - IP65 Dust Proof, Water Proof (Intense Spray) - Fiberglass Substrate - 3M Pressure Sensitive Adhesive (PSA) - Upon Request - Male or Female Nicomatic Connectors - Wiper of 1-3 Newton Force to Actuate Part - Contactless Options Available Mechanical Specifications Electrical Specifications -Life Cycle: >10 million -Resistance - Standard: 10k Ohms -Height: 0.51mm (0.020 ) (lengths >300mm = 20k Ohms) -Actuation Force (with a 10mm wide active cavity): -Resistance - Custom: 5k to 100k Ohms -40C 3.0 to 5.0 N -Resistance Tolerance: 20% -25C 2.0 to 5.0 N -Effective Electrical Travel: 10 to 1200mm +23C 0.8 to 2.0 N -Linearity (Independent): Linear 1% or 3% +85C 0.7 to 1.8 N Rotary 3% or 5% -Repeatability: No hysteresis, but with any wiper looseness some hysteresis will occur Environmental Specifications -Power Rating (depending on size, varies with -Operating Temperature: -40C to +85C length and temperature): 1 Watt max. 25C, -Humidity: No affect 95% RH, 24hrs 60C 0.5 Watt recommended -IP Rating of Active Area: IP65 -Resolution: Analog output theoretically infinite affected by variation of contact wiper surface area. -Dielectric Value: No affect 500VAC for 1 minute Dimensional Diagram - Stock Linear HotPots PART LENGTH P 10.16 0.400 ACTIVE LENGTH A TAIL WIDTH PIN 1 20.32 0.800 6.60 0.260 7.11 0.280 TAIL LENGTH T ACTIVE WIDTH 7.93 0.312 12.50mm 25.00mm 50.00mm 100.00mm 150.00mm 170.00mm 200.00mm 300.00mm 400.00mm 500.00mm 750.00mm 1000.00mm A 0.492 0.984 1.969 3.937 5.906 6.693 7.874 11.811 15.748 19.685 29.528 39.370 28.36mm 40.86mm 65.86mm 115.86mm 165.86mm 185.86mm 215.86mm 315.86mm 415.86mm 515.86mm 765.86mm 1015.86mm P 1.117 1.609 2.593 4.562 6.531 7.318 8.499 12.436 16.373 20.310 30.153 39.995 12.70mm 24.89mm T 0.500 0.980 spectrasymbol.com Rev F2 - Page 1 (888) 795-2283Electrical Schematic Material Cross-Section PIN 3 (GND) (LEFT BUS BAR) 0.41 0.016 CIRCUIT PIN 2 (COLLECTOR) 0.05 0.002 3M 200MP ADHESIVE PIN 1 (V+) 0.46 0.018 TOTAL THICKNESS (RIGHT BUS BAR) 10K or 20K How to Order - Linear HotPots HP L 0050 103 3% ST Series Model Active Length Resistance Connectors 0012 = 12,5mm Active Lengths < 300mm ST = Solder Tab HP = HotPot L = Linear 0025 = 25mm 103 = 10 KOhm MP = Male Pins 0050 = 50mm Active Lengths > 300mm RH = Receptacles w/Plain Housing 0100 = 100mm RL = Receptacles w/Latch Housing 203 = 20 KOhm 0150 = 150mm RD = Receptacles w/Detent Housing 0170 = 170mm 0200 = 200mm 0300 = 300mm Ind. Linearity 0400 = 400mm 0500 = 500mm 1% = 1% 0750 = 750mm 3% = 3% 1000 = 1000mm Standard Connector Options Crimpflex Solder Tab (ST) Crimpflex Short Male Pins (MP) Crimpflex Female Receptacles with a Plain Housing (RH) Crimpflex Female Receptacles with a Latch Housing (RL) Crimpflex Female Receptacles with a Detent Housing (RD) spectrasymbol.com Page 2 (888) 795-2283
