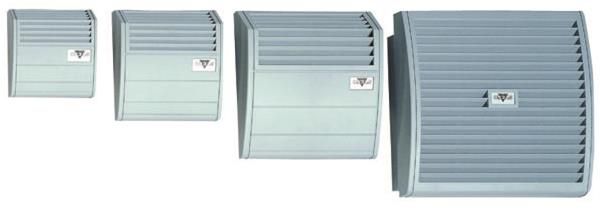

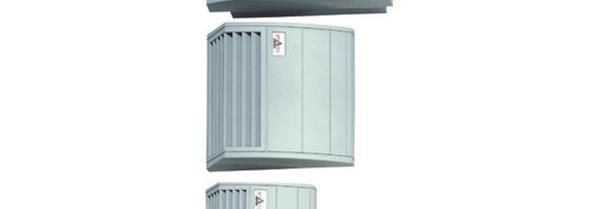

Very low noise Minimal depth in enclosure Functional design Time-saving installation High level shielding EMI + Standard Filter Fan 2 2 3 1 FF 018 4 3 4 The newly developed filter fan design serves three functions: Easy mounting for axial fan High air flow High EMI screening: numerous integrally molded contact springs hinder electromagnetic interference fields originating from within the cabinet or penetrating from outside. The self-adhesive seal of the mounting frame prevents dust and water from entering the cabinet. A spring contact strip on the EMI version additionally forms a continuous conductive connection between the cabinet cut-out and the mounting frame. Time-saving assembly and maintenance The necessary cut-out in the cabinet is effectively sealed against high frequency STEGO s new filter fan is easily connected and installed radiation directly on the line of the cabinet wall. from outside the cabinet. The functional design of the intake and exhaust fan hoods very effectively 1 When using the EMI version, only the cut edge of the prevents direct infiltration of falling water and dust. cabinet opening must be paint-free. The advantage: quick and reliable removal of the paint Air channeling makes the filter fan particularly quiet in operation. layer and no damage to the cabinet sides. 2 Remove protective film from the sealing strips on the mounting frame and press into the cabinet opening. The frame stays permanently in the cabinet. 3 Electrically connect the axial fan using the clip connectors and push the unit into the mounting frame. Affix using screws. 4 Insert the filter mat in the hood. Clip hood on. Finished. Schirmdmpfungsmessung bis 10 GHz Shielding measurement up to 10GHz nach NSA 65 - 6 EMV-Filterlfter 01802.1-00 EMI-Filter fan 01802.1-00 according to NSA 65 - 6 EEMI-Filter fan 01801.1-00MV-Filterlfter 01801.1-00 EMI-Filter fan 01800.1-00 EMV-Filterlfter 01800.1-00 120 100 80 60 40 20 0 1 10 100 1000 10000 FrFrequency in MHzequenz in MHz U.S. Patent No. 6,699,301 B1 STEGO, Inc. 2270 Northwest Parkway Suite 170 Marietta, GA 30067 Tel: (770) 984-0858 Fax: (770) 984-0615 Toll free: 1-888-783-4611 (US & Canada only) www.stegousa.com Schirmdmpfung in dB Shielding in dB2.0 3.4 8.2 2.3 1.6 6.2 1.41.8 5.1 FILTER FAN FF 018 Series Standard EMI Version Standard EMI Version Standard EMI Version Part No. AC 230 V, 50 Hz: 01800.0-00 01800.1-00 01801.0-00 01801.1-00 01802.0-00 01802.1-00 Part No. AC 120 V, 60 Hz: 01800.0-01 01800.1-01 01801.0-01 01801.1-01 01802.0-01 01802.1-01 Filter mat: Medium grade 350 g/m, filtering degree 94%, Particle < 10 m, G4 (EN 779) Air volume free blowing: 12 cfm (21 m/h) 35 cfm (60 m/h) 60 cfm (102 m/h) with exit filter: 9 cfm (16 m/h) 24 cfm (42 m/h) 40 cfm (68 m/h) Current consumption 230 V: 80 mA 100 mA 100 mA 120 V: 160 mA 180 mA 180 mA Power consumption 230 V: 13W 15W 15W 120 V: 13W 15W 15W Average noise level at 3 ft DIN EN ISO 9614-2: 31 dB (A) 40 dB (A) 39 dB (A) Mounting depth: 1.8 (45 mm) 2.3 (58 mm) 3.4 (86 mm) Enclosure cut-out: 3.8 x 3.8 (97 x 97 mm +0.4) 4.9 x 4.9 (125 x 125 mm +0.4) 6.9 x 6.9 (176 x 176 mm +0.4) Weight: 1.2 lbs (0.54 kg) 2.2 lbs (1.0 kg) 4.2 lbs (1.9 kg) Air flow increases by approximately 15% for 120V / 60Hz models EXHAUST FILTER EF 118 Series Standard EMI Version Standard EMI Version Standard EMI Version Part No.: 11800.0-00 11800.1-00 11801.0-00 11801.1-00 11802.0-00 11802.1-00 Filter mat: Medium grade 350 g/m, filtering degree 94%, Particle < 10 m, G4 (EN 779) Mounting depth: 0.6 (16 mm) 0.6 (16 mm) 0.6 (16 mm) Enclosure cut-out: 3.8 x 3.8 (97 x 97 mm +0.4) 4.9 x 4.9 (125 x 125 mm +0.4) 6.9 x 6.9 (176 x 176 mm +0.4) Weight: 0.6 lbs (0.27 kg) 0.8 lbs (0.38 kg) 1.3 lbs (0.60 kg) Mounting frame Hole centers for attaching with screws - hole 1/8 (3 mm) X X = 4.3 (109 mm) X = 5.4 (137 mm) X = 7.4 (188 mm) X OTHER TECHNICAL DATA: Axial fan: Ball bearing, aluminum frame, plastic impeller UL94V-O Filter material: Synthetic fiber with progressive construction, temperature resistant Operational life min. 50,000 hrs at 77F (RH 65%) to 212F, self-extinguishing class F1. Ambient temperature -22F to 158F Moisture resistant to 100% RH. 2 lead wires 4 long with pressure clamps, type AWG 14 max. Can be cleaned by washing or vacuuming for reuse. DC Axial fan in 12 V, 24 V, 48 V available on request Replacement filter mats available on request. Filter fan & exhaust Plastic, UL94V-O The fan mounting on the EMI Version is plated and the mounting filter housing: Color light grey, temperature resistant -31F to 158F. frame is fitted with Be Cu contact strips. Protection with standard filter mats G4: IP 54. Mounting frame: With double sided industrial adhesive band for affixing Using fine filter mats F5 increases the protection to IP 55 but to the outside of enclosure. Certain operating circumstances may reduces the air volume. make the additional use of screws necessary. U.S. Patent No. 6,699,301 B1 Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application. STEGO, Inc. 2270 Northwest Parkway Suite 170 Marietta, GA 30067 Tel: (770) 984-0858 Fax: (770) 984-0615 Toll free: 1-888-783-4611 (US & Canada only) www.stegousa.com 3.8 5.3 4.9 6.7 6.9 8.9 FF018-11-05/US
