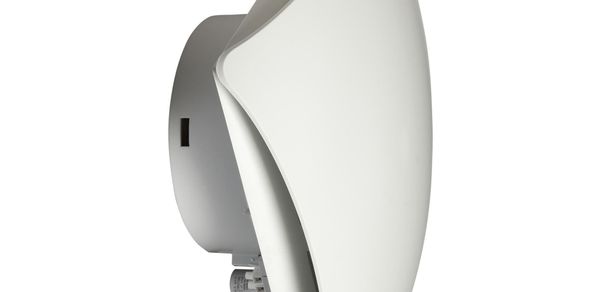

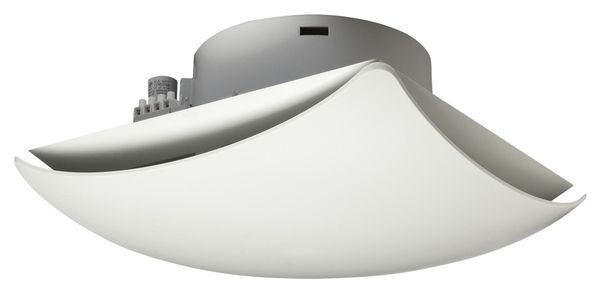

Roof Filter Fan RFP 018 Series 300m/h, 500m/h Very low noise Minimal depth in enclosure High through-flow air volume High reliability Time-saving installation and mat exchange Photo: Art. No. 01860.0-00 Roof filter fans find use in enclosures and housings, from which warm air has to be diverted to lower the internal temperature. These low-noise roof filter fans are used to expel warm air from within the enclosure which has been generated by the stray power of the components and so protects the internal devices from overheating. To exchange the filter mat the hood can be easily opened without tools. The roof exit filter provides passive ventilation. Photo: Art. No. 01861.0-00 Technical Data Axial fans, ball bearing service life 50,000h at 25C/77F (65% RH) Roof Filter Fan (01860.0-xx) fan body aluminium, rotor plastic Connection 3-pole clamp for 2.5mm, clamping torque 0.8Nm max. Case plastic according to UL94 V-0, light grey weather proof and UV light resistant according UL746C (f1) Filter mat G3 acc. to DIN EN 779, filtering degree 85% Filter material synthetic fibre with progressive construction, temperature resistant to 100C, self-extinguishing class F1 moisture resistant to 100% RH, reusable - cleaning by washing or vacuuming Operating / Storage humidity max. 90 % RH (non-condensing) Prot. type / Protection class IP32 / I (earthed) Roof Filter Fan (01861.0-xx) Approvals UL intended (230V only: VDE) Important note: For reasons of pressure compensation the roof filter fan must always be operated in combination with a passive intake filter (e.g. Art. No. 11803.0-00) or another filter fan (e.g. Art. No. 01803.0-00). Enclosure cut-out Roof Filter Fan RFP 018 Series Operating Air volume, Current Average noise level Depth in Enclosure Weight Operating / Art. No. consumption (DIN EN ISO 4871) enclosure voltage free flow cut-out (approx.) Storage temperature 01860.0-00 230VAC, 50Hz 300m/h 68W 55dB (A) 52mm 250 x 250mm + 0.4 3.3kg -10 to +70C (+14 to +158F) / -40 to +70C (-40 to +158F) 01861.0-00 230VAC, 50Hz 500m/h 64W 67dB (A) 107mm 250 x 250mm + 0.4 2.6kg -25 to +70C (-13 to +158F) 01860.0-02 120VAC, 60Hz 345m/h 60W 55dB (A) 52mm 250 x 250mm + 0.4 3.3kg -10 to +70C (+14 to +158F) / -40 to +70C (-40 to +158F) 01861.0-02 120VAC, 60Hz 575m/h 85W 67dB (A) 107mm 250 x 250mm + 0.4 2.6kg -25 to +70C (-13 to +158F) Roof Exit Filter REP 118 Series Art. No. Depth in enclosure Enclosure cut-out Weight (approx.) Filter mat Protection type 11860.0-00 11mm 250 x 250mm + 0.4 1.0kg G3 acc. to DIN EN 779, filtering degree 85% IP32 Filter Mat FM 086 Filter mat 282 x 282mm G3 (1 packing unit = 3 pcs.) Art. No. 08613.0-01 ++ STEGO UK Ltd. + Unit 12, First Quarter Business Park + Blenheim Road + Epson, Surrey KT19 9QN + England + info stego.co.uk + www.stego.co.uk ++ 26 Specifications are subject to change without notice. Errors and omissions excepted. Suitability of this product for its intended use and any associated risks must be determined by the end customer/ Ventilating buyer in its final application. 04.08.2010 Hole centersX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for stego manufacturer: Other Similar products are found below : 01870.0-30 01873.0-30 01874.0-30 11884.0-30 14003.0-00 01805.0-00 01925.0-00 11870.0-00 11873.0-00 02541.1-03-0003 03082.0-01 03082.0-00 03084.0-00 01131.2-01 02031.0-00 02032.0-00 02035.0-10 02540.0-03 01131.9-00 08605.0-00 03114.0-00 01871.1-30 01925.1-01 12101.0-30 01163.0-01 01163.0-03 01164.0-00 01170.0-01 01170.9-01 08601.0-00 01882.0-00 14006.0-00 14008.0-00 01802.0-00 02820.0-06 02701.0-00 04640.0-00 06020.0-00 11802.0-00 02540.0-00 03202.9-00 244358 01131.2-00 01231.1-00 28410.0- 00 244356 01185.1-00 02034.0-00 02540.1-11 02540.1-13
