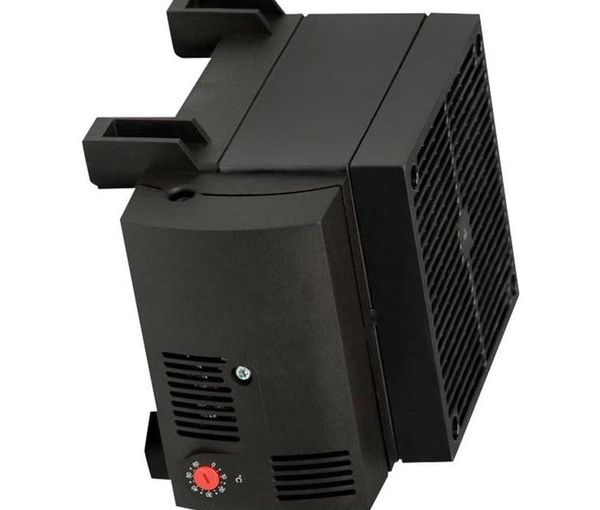

3636 HEATING PRODUCT CATALOGUE - STEGO TECHNICAL DATASHEET COMPACT HIGH-PERFORMANCE FAN HEATER (SEMICONDUCTOR) CS 030 1,200 W > Compact design > Double insulated > High heating performance > Integrated thermostat (optional) The compact high performance fan heater prevents formation of condensation and frost  and provides an evenly distributed interior air temperature in enclosures with electric/electronic components. The plastic housing provides double insulation and acts as protection against contact. The fan heater is available with optional integrated thermostat for temperature control. The CS 030 was designed as a stationary unit for the bottom of the enclosure. For wall fixing the fan heater CS 130 is recommended. TECHNICAL DATA Heating element PTC resistor temperature limiting Temperature safety cut-out to protect against overheating in case of fan failure, automatic reset Axial fan, ball bearing airflow 160 m/h, free flow service life 50,000 h at +25 C (+77 F) Connection 2-pole max. 2.5 mm, clamping screw with strain relief, 145 torque 0.8 Nm max. 130 Casing plastic according to UL94 V-0, black Mounting screw fixing (M5) Fitting position vertical airflow (air outet up) Dimensions 168 x 145 x 120 mm Weight approx. 1.2 kg Operating/Storage temperature -45 to +70 C (-49 to +158 F) Operating/Storage humidity max. 90 % RH (non-condensing) Protection type/Protection class IP20 / II (double insulated) Heating capacity / Ambient temperature diagram CS 030 Connection diagram Temperature (C) Art. No. Model Operating voltage Heating Inrush current Recommended Setting range Approvals capacity max. pre-fuse T (time-delay) 03060.0-00 Fan Heater with thermostat AC 230 V, 50/60 Hz 1,200 W 13.0 A 10.0A 0 to +60 C VDE UL File No. E150057 EAC 03060.0-01 Fan Heater without thermostat AC 230 V, 50/60 Hz 1,200 W 13.0 A 10.0A - VDE UL File No. E150057 EAC 03060.9-00 Fan Heater with thermostat AC 120 V, 50/60 Hz 1,200 W 16.0 A 16.0A +32 to +140 F - UL File No. E150057 EAC 03060.9-01 Fan Heater without thermostat AC 120 V, 50/60 Hz 1,200 W 16.0 A 16.0A - - UL File No. E150057 EAC at +20 C (+68 F) ambient temperature Switch temperature difference 7 K (4 K tolerance) according to UL 508A, NITW File on request 105 120 168 Heating capacity (W) 04.04.2017 Specifications are subject to change without notice. Errors and omissions excepted. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application. www.stego.de www.stego.co.uk www.stegonorden.seX-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Stego manufacturer: Other Similar products are found below : 01803.0-00 01870.0-30 01874.0-30 11882.0-30 14005.0-00 01805.0-00 01883.0-00 01925.0-00 02820.0-06 03504.0-00 11872.0-00 02541.1-03-0003 03082.0-01 03083.0-01 03209.9-00 03082.0-00 03084.0-00 01131.2-01 01170.9-00 01190.0-00 28410.0-00 02032.0-00 02540.1-13 03502.0-01 01131.9-00 08605.0-00 03114.0-00 01871.1-30 01925.1-01 12101.0-30 01163.0-01 01163.0-03 01164.0-00 01170.0-01 01170.9-01 08601.0-00 01351.0-00 01872.0-30 01131.0-00 01350.0-00 14003.0-00 02821.0-06 03503.0-00 02701.0-00 11803.0-00 11873.0-00 01131.2-00 01231.1-00 244356 04007.0-00
