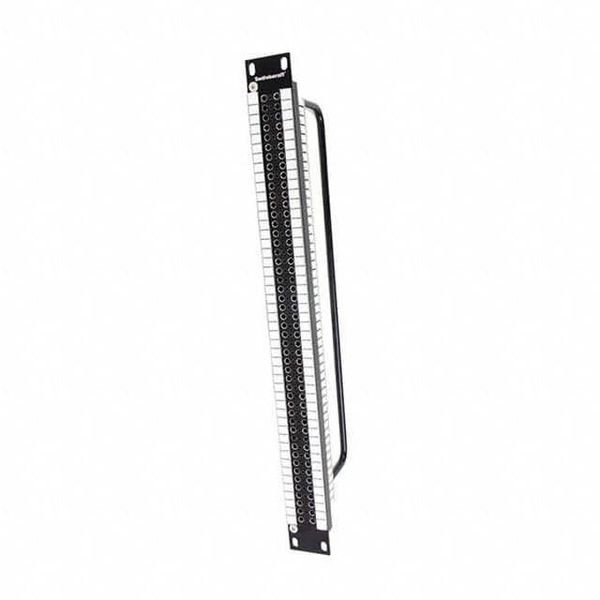

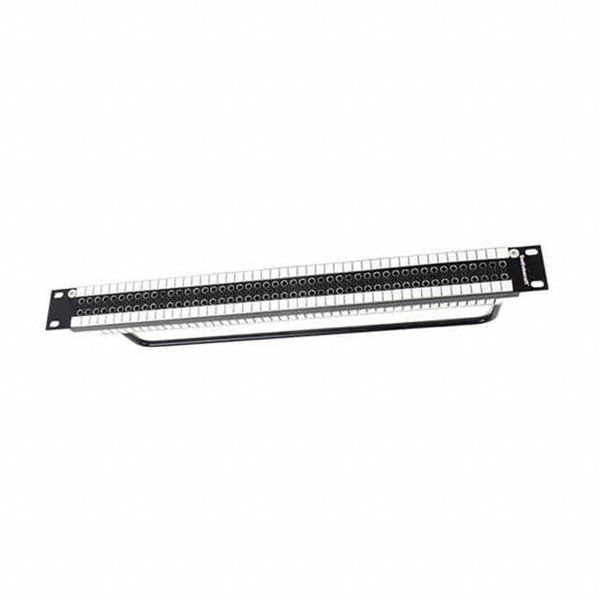

Switchcraft MMVP Micro Video Patchbays MMVP48K175T -1RU / 96 Patch-points -Fully Normalled -75 Ohm Terminated -Designation strip height: .380 Now available with channel marking color chips - sold separately Features MMVP Series Micro Video Patchbays The MMVP Series provides the highest level of density for -Based on the proven, reliable, SMPTE 424M video and AES/EBU digital audio patching... patented technology of our MVJ 48 channels (96 patch-points) in a 1RU 19 rack space. Series of HD video jacks. Based on the patented, proven design of our MVJ MidSize video -Screw in, all metal jack design jack, the all metal, screw-in jack provides complete stability and withstands vibration in mobile durability in even the most extreme applications, including mobile applications. production. The MMVP jack is rated at 3GHz and meets SMPTE 424M specifications. Industry standard DIN 1.0 / 2.3 rear -Rated at 3GHz - meets termination makes installation easy and eliminates the need for SMPTE 424M specifications proprietary connectors or special tooling. for HD patching. Each patchbay jack can be color coded using our new color chips. Each chip snaps into the front panel, providing instant channel identification. Additionally, snap-in posts on either side of the designation strips secure designation labeling. The MMVP Series is available in 1RU and 2RU heights for greater flexibility. 2RU versions are available with two rows of jacks (4x48 density). All versions are available normalled, non-normalled, 75 Ohm terminated or non-terminated. Contact Switchcraft for custom options. Switchcraft Made in USA www.switchcraft.com sales switchcraft.com 773-792-2700 New Product Bulletin 580 Switchcraft MMVP Micro Video Patchbays MMVP48K1NTAES -1RU / 96 Patch-points -Designed for AES/EBU Digital Audio -Designation strip height: .380 MMVP96K375T -2RU / 192 Patch-points -Fully Normalled -75 Ohm Terminated -Designation strip height: .500 Patchbay Part Numbers Color Chip Part Numbers K600 Bag of 60 MMVP Color Chips, 10 of each color MMVP48K175T 1RU, 2x48, Normalled, Terminated K6002D Bag of 50 MMVP Color Chips, Red MMVP48K1NT 1RU, 2x48, Normalled, Non-Terminated K6003B Bag of 50 MMVP Color Chips, Orange MMVP48K1N75T 1RU, 2x48, Non-Normalled, Terminated K6004B Bag of 50 MMVP Color Chips, Yellow MMVP48K1NNT 1RU, 2x48, Non-Normalled, Non-Terminated K6005N Bag of 50 MMVP Color Chips, Green MMVP48K375T 2RU, 2x48, Normalled, Terminated K6006L Bag of 50 MMVP Color Chips, Blue MMVP48K3NT 2RU, 2x48, Normalled, Non-Terminated K6009B Bag of 50 MMVP Color Chips, White MMVP48K3N75T 2RU, 2x48, Non-Normalled, Terminated MMVP48K3NNT 2RU, 2x48, Non-Normalled, Non-Terminated MMVP96K375T 2RU, 4x48, Normalled, Terminated MMVP96K3NT 2RU, 4x48, Normalled, Non-Terminated MMVP96K3N75T 2RU, 4x48, Non-Normalled, Terminated MMVP96K3NNT 2RU, 4x48, Non-Normalled, Non-Terminated Switchcraft Made in USA www.switchcraft.com sales switchcraft.com 773-792-2700 New Product Bulletin 580
