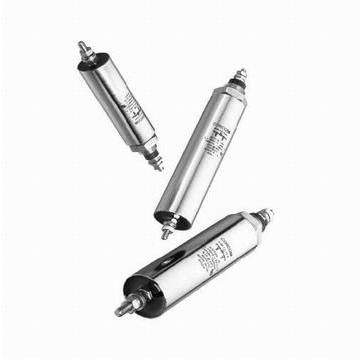

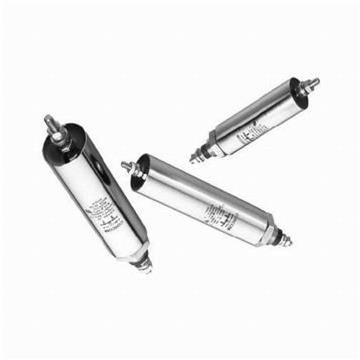

100FFA6-HC TE Connectivity

Catalog: 1654001 Corcom Product Guide Issue Date: 06.2011 AC Feedthrough Filters Class Y2 FFA Series Component Recognized by UL to US and Canadian Requirements FFA Series Specications Rated Voltage (max): 250 VAC AC feedthrough lters Operating Frequency: 50/60 Hz Current Ratings from 10 to 300A Rated Current: 10 to 300A Designed to meet the very stringent safety Test Voltage (two seconds): 5000 VDC requirements of EN133200 class Y2 including the 5000V pulse test Capacitor Class (EN133200): Designed to meet Y2 Pulse Test (EN133200): 5000V Peak Custom versions available Insulation Resistance (within 1 minute): Ordering Information For C < 0.33F, R> 15000M For C > 0.33F, RC(M*F)>5000s 10 FFA6 BA Operating Ambient Temperature Range (at rated current I ): r Filter ID 10 to 100A: -40C to +60C See Table 200A: -40C to +50C 250 & 3 +40C 00A: -40C to FFA Series Screw Terminals Category Temperature Range: -40C to +85C Current Rating (in A) Current Derating Above Ambient: 10-100A: For temperature, = R (85- )/25 Filter Options / Specications 200A: For temperature, = R (85- )/35 Max. 250 & 300A: For temp., = R (85- )/45 DC Leakage Filter Inductance Current Resistance Climatic Category: 40/85/21 ID Value (nF) (nH) (mA)* (m) Max. MTBF: > 5 million hours typical BA 2 x 4.7 70 0.9 6 Insulating Materials Flammability Rating: UL94V-0 CA 2 x 10 70 1.9 4 CE 2 x 10 140 1.9 7 Case & Terminal Material: Nickel Plated Brass DG 2 x 22 170 4.2 4 DH 2 x 22 180 4.2 4 GB 2 x 47 80 8.9 3 Electrical Schematic GJ 2 x 47 210 8.9 9 HC 2 x 100 90 19 2 HD 2 x 100 120 19 1 HF 2 x 100 160 19 < 1 HN 2 x 100 250 19 6 JK 2 x 150 240 29 3 NP 2 x 470 330** 89 < 2 PP 2 x 1000 330 188 < 2 228 Dimensions are in inches and millimeters unless otherwise specied. Values in italics For email, phone or live chat, please go to te.com/help are metric equivalents. Dimensions are shown for reference purposes only. corcom.com Specications subject to change.Feedthrough Filters and Capacitors Catalog: 1654001 Corcom Product Guide Issue Date: 06.2011 AC Feedthrough Filters Class Y2 (continued) FFA Series Case Style Case Dimensions Resin Fill T2 (Mounting thread) A B C D E F T1 (Terminal thread) Part No. 10FFA6-BA C D E B F 16FFA6-CA 32FFA6-CA A 63FFA6-GB T1 Terminal Thread 100FFA6-HC Torque Part No. Thread max. in.lb. 200FFA6-HD M3 4 10FFA6-BA/CE/CJ 16FFA6-CA/DG/HN M4 11 300FFA6-HF 32FFA6-CA/DH/HN M6 22 63FFA6-GB/JK/NP 10FFA6-CE M8 44 100FFA6-HC/NP/PP M10 70 16FFA6-DG 200FFA6-HD/NP/PP 32FFA6-DH M12 97 250FFA6-HF/NP/PP M16 177 300FFA6-HF/NP/PP 63FFA6-JK T2 Mounting Thread 100FFA6-NP Torque Part No. Thread 5 max. in.lb. 200FFA6-NP 10FFA6-BA/CE/CJ M12 x 1 35 16FFA6-CA 250FFA6-NP 32FFA6-CA 300FFA6-HN 16FFA6-DG/HN M16 x 1 62 10FFA6-GJ 32FFA6-DH/HN 63FFA6-GB 16FFA6-HN 63FFA6-JK 32FFA6-HN M20 x 1 89 100FFA6-HC 63FFA6-NP 100FFA6-NP M24 x 1 124 200FFA6-HD 100FFA6-PP 63FFA6-NP M27 x 1.5 142 100FFA6-PP 200FFA6-PP 200FFA6-NP/PP 250FFA6-PP 250FFA6-HF/NP/PP 300FFA6-PP M32 x 1.5 212 300FFA6-HF/NP/PP 229 Dimensions are in inches and millimeters unless otherwise specied. Values in italics For email, phone or live chat, please go to te.com/help are metric equivalents. Dimensions are shown for reference purposes only. corcom.com Specications subject to change.
