MICRO SFP+
CONNECTOR &
CABLE ASSEMBLY

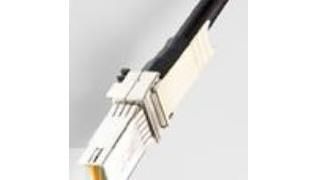

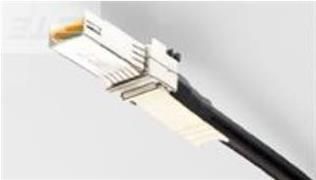

micro SFP+ Connector and Cable Assembly
TE Connectivitys (TE) micro SFP+ connector and cable assembly empower you to dream big when
designing your communication system. Through a footprint thats up to 50% smaller than current SFP+
interconnects, the micro SFP+ interconnects allow you to increase faceplate density while freeing up ad-
ditional PCB space due to the board connectors shortened length. The products designs have also been
enhanced to improve signal routing, minimize EMI and optimize automated manufacturing processes.
Increases Faceplate Density / Saves PCB Space: micro SFP+ is up to 50% smaller than current SFP+
connectors, in width and length, taking up as little as 15mm board space. One micro SFP+ frees up
19% more faceplate space than 1 SFP+ connector.
Improves Signal Integrity: The cable assembly and connector were designed with a staggered
contact configuration that improves signal routing. Additionally, the bottom and top contacts have
been further optimized for speed.
Reduces EMI: EMI is minimized through a die cast housing, cable shield crimped at 360 degrees, and
an extended EMI shield over the cables plug.
Optimizes Manufacturing Processes: For manufacturing automation, the board interconnect
combines the connector & cage into one finished product for automated of board placement. High
temperature pin in paste soldering can be achieved as the product withstands up to 265 degrees
Celsius.
DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLYApplications
Telecommunications: Cellular infrastructure, hubs servers and switches
Data communication: servers and storage equipment
Medical diagnostic equipment
Networking: Network interface, storage, power supplies and test and measurement equipment
Specifications / Protocols
Electrically compliant to SFF-8431
10 Gigabit Ethernet and Gigabit Ethernet (IEEE802.3ae)
Fibre channel: 1, 2, 4 and 8 GFC
InfiniBand standard (10Gbps)
Fibre Channel over Ethernet (FCoE)
Serial data transmission
Parts Reference Guide
Minimum Maximum
Part Configuration Data Rate AWG Cable Length Cable Length Equalization
micro SFP+ to micro
2142969 10 Gbps 26 0.5m 6.0m unEQ
SFP+
2142970 micro SFP+ to SFP+ 10 Gbps 26 0.5m 6.0m unEQ
Connector
EMI Spring
Part Number Configuration Finger Design Solder Tail Lightpipe
2246040-1 micro SFP Yes Yes No
2246041-1 micro SFP+ Yes Yes No
DATA COMMUNICATIONS /// MICRO SFP+ CONNECTOR AND CABLE ASSEMBLY
