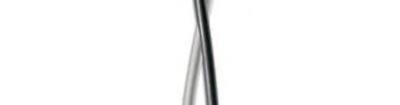

44A1121-18-0/9-9 Twisted Pair Cable, Spec 44, 600VAC Twisted Pair Cable Voltage Rating, 18AWG Wire Size, Operating Temperature Range -65 150 C 44A1121-18-0/9-9 ACTIVE Raychem TE Internal : 3824323009 Twisted Pair Cable, Spec 44, 600VAC Twisted Pair Cable Voltage Rating, 18AWG Wire Size, Operating Temperature Range -65 150 C View on TE.com> Wire & Cable > Twisted Pair Cable Twisted Pair Cable Type: Spec 44 Twisted Pair Cable Voltage Rating: 600 VAC Twisted Pair Cable Insulation Material: Modified Radiation Cross-linked PVDF Twisted Pair Cable Conductor Material: Tin-Coated Copper Wire Size: 18 AWG Features Product Type Features Twisted Pair Cable Type Spec 44 Electrical Characteristics Twisted Pair Cable Voltage Rating 600 VAC Body Features Twisted Pair Cable Insulation Material Modified Radiation Cross-linked PVDF Twisted Pair Cable Conductor Material Tin-Coated Copper Dimensions Wire Size 18 AWG Usage Conditions Operating Temperature Range -65 150 C Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant EU ELV Directive 2000/53/EC Compliant China RoHS 2 Directive MIIT Order No 32, 2016 No Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUL 2021 10/10/2021 11:07PM Page1 For support call+1 800 522 6752 44A1121-18-0/9-9 Twisted Pair Cable, Spec 44, 600VAC Twisted Pair Cable Voltage Rating, 18AWG Wire Size, Operating Temperature Range -65 150 C Current ECHA Candidate List: JUL 2021 (219) Candidate List Declared Against: JUL 2021 (219) Does not contain REACH SVHC Halogen Content Out of Scope - excluded from Halogen requirements Solder Process Capability Not applicable for solder process capability Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) Guidance on requirements for substances in articles posted at this URL:
