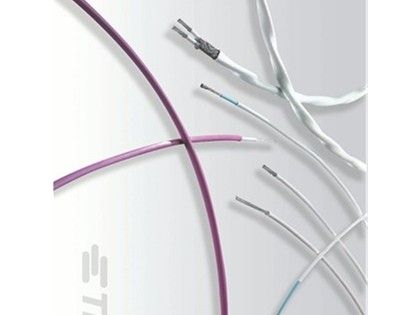

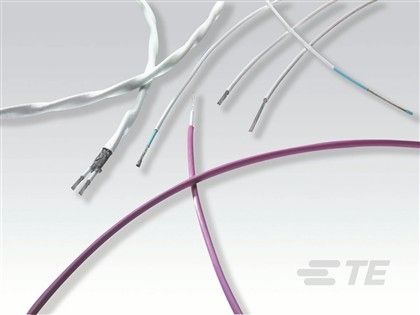

55A7238 SPECIFICATION CONTROL DRAWING Date Revision TITLE THREE CONDUCTOR CABLE, SHIELDED, JACKETED, A 4-8-06 GENERAL PURPOSE, 600 VOLT This specification sheet forms a part of the latest issue of Raychem Specification 55A. COMPONENT WIRES - 55A0213 JACKET - RADIATION-CROSSLINKED, SHIELD - TIN-COATED COPPER MODIFIED ETFE FILAMENT STRIPPING THREAD - NOMEX, 200/I/4E, No finish CABLE CONSTRUCTION DETAILS JACKET THICKNESS OUTSIDE DIAMETER SHIELD MAXIMUM CONDUCTOR (inches) (inches) PART NUMBER SIZE WEIGHT SIZE 1/ (AWG) (lb/1000 ft.) (AWG) NOMINAL NOMINAL MINIMUM MAXIMUM 22 38 .135 17.4 55A7238-22-* .006 .008 .142 55A7238-20-* 20 38 .006 .008 .152 .160 23.5 18 38 55A7238-18-* .006 .008 .176 .185 32.5 55A7238-16-* 16 38 .191 39.0 .006 .008 .201 55A7238-14-* 14 38 .007 .009 .225 .236 56.5 12 38 .264 81.0 55A7238-12-* .007 .009 .277 CABLE RATINGS AND ADDITIONAL REQUIREMENTS TEMPERATURE RATING: 150C LIFE CYCLE: 200 3C for 168 hours Maximum continuous conductor temperature LOW TEMPERATURE-COLD BEND: -65 3C for 4 hours SHIELD COVERAGE: 85% (minimum) VOLTAGE RATING: 600 volts (rms) at sea level ACCELERATED AGING: 300 3C for 7 hours VOLTAGE WITHSTAND TEST: (POST ENVIRONMENTAL) 1000 volts (rms), 60 Hz, l minute BLOCKING: 200 3C for 6 hours DIELECTRIC WITHSTAND: 1500 volts (rms), 60 Hz FLAMMABILITY: PART NUMBER: The in the part numbers above shall be replaced Procedure 1, 3 seconds (maximum) 3 in. (maximum) no flaming of facial tissue by color code designators with a slash separating the component wire colors and a dash separating the JACKET COLOR: White preferred JACKET ELONGATION AND TENSILE STRENGTH: component wires color from the jacket color. Colors shown Elongation, 50% (minimum) do not necessarily reflect the sequence of manufacturing. Example: AWG 20, black, brown and red component wires Tensile Strength, 5000 lbf/in (minimum) JACKET FLAWS: white jacket: 55A7238-20-0/1/2-9 Spark Test, 1000 volts (rms) Impulse Dielectric Test, 6.0 kV (peak) NOTE: Nominal values are for information only. Nominal values are not requirements. NOMEX is a registered trademark of E.I. du Pont de Nemours and Company. Users should evaluate the suitability of this product for their application. Specifications are subject to change without notice. Tyco Electronics also reserves the right to make changes in materials or processing, which do not affect compliance with any specification, without notification to Buyer. 1/ COLORS AND COLOR CODE DESIGNATORS SHALL BE IN ACCORDANCE WITH MIL-STD-681. HOWEVER, DUE TO LENGTH LIMITATIONS OF THE RAYCHEM PART NUMBER, AN ALTERNATIVE COLOR CODE MAY REPLACE MIL-STD-681 COLOR CODE DESIGNATORS. (EXAMPLE: 901/902... MAY BE REPLACED BY Axxx.) OTHER CODES AND SUFFIXES MAY BE ADDED TO THE PART NUMBER, AS NECESSARY, TO CAPTURE ANY ADDITIONAL REQUIREMENTS IMPOSED BY THE PURCHASE ORDER. R Wire & Cable DIMENSIONS ARE IN INCHES, AND UNLESS OTHERWISE DESIGNATED ARE NOMINAL. 501 Oakside Avenue Redwood City, CA 94063-3800 Page 1 of 1 THIS SPECIFICATION SHEET TAKES PRECEDENCE OVER DOCUMENTS REFERENCED HEREIN. Phone: 1-800-227-8816 REFERENCED DOCUMENTS SHALL BE OF THE ISSUE IN EFFECT ON DATE OF INVITATION FOR BID. Fax: 1-650-361-6297 2006 Tyco Electronics Corporation. All rights reserved.X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Multi-Conductor Cables category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 8916-GRY-100 8917-BLK-100 8917-GRN/YEL-100 8918-GRN/YEL-100 8920-BRN-1000 8920-RED-1000 89907-LT-DEC/GRY-500 CR3909-000 CR3927-000 01342.35T.01 01364.35T.01 003201-000 CS2885-000 CS8782-000 CS9912-000 6200UE-NAT-U1000 CTC- 0062-20-9/5-9 CTC-0062-22-9/5-9 6304FE-877-U500 6309UE-877-1000 6320UE-NAT-U1000 644833-000 6502FE 8771000 6504UE-877- U1000 CW9530-000 CX6543-000 CXA-0066-20-4-9CS2973 CXA-0078-16-1-9CS2405 CXA-0078-22-4-9CS2405 CXA-0078-24-4- 9CS2405 CXA-0140-16-6/9-9CS2405 CY0660-000 706/2R-BLACK-EACH 720451-000 730859-000 MCC-USB-4-250 752687-000 768146-000 773159-000 7934A-BLK-1000 8125-CHR-100 8164-CHR-1000 820457-000 8205-CHR-1000 8240-BLK-U1000 82723-NAT- 1000 82907-NAT-500 83003-YEL-500 83005-WHT-500 83006-DK-GRN-100
