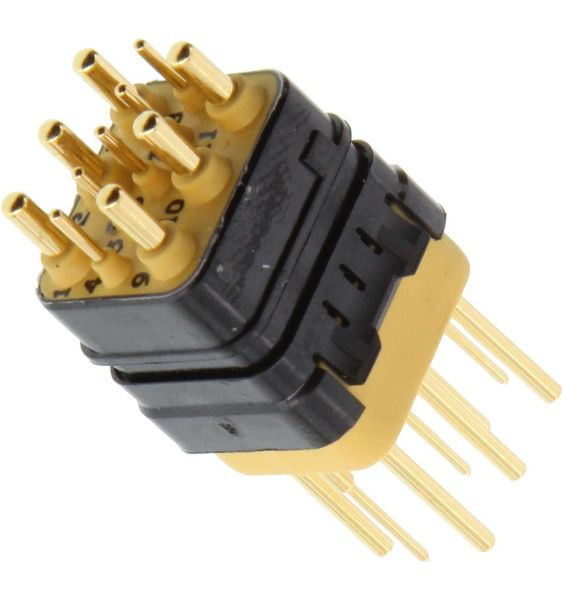

732-8255-99 TE Connectivity

732-8255-99 Rectangular Contact Inserts, Pin, Pin, Wire-to-Board, 11 Position, 2.62mm / 4.4mm . 103in / .173in Centerline, Sealable, Printed Circuit Board 732-8255-99 ACTIVE DEUTSCH TE Internal : ZPF000000000100308 Rectangular Contact Inserts, Pin, Pin, Wire-to-Board, 11 Position, 2.62mm / 4.4mm .103in / .173in Centerline, Sealable, Printed Circuit Board View on TE.com> Connectors > Rectangular Connectors > Rectangular Contact Inserts Rectangular Connector Insert Type: Pin Contact Type: Pin Connector System: Wire-to-Board Number of Positions: 11 Centerline (Pitch): 2.62 mm, 4.4 mm .103 in, .173 in Features Product Type Features Product Type Module Rectangular Connector Insert Type Pin Connector System Wire-to-Board Sealable Yes Connector & Contact Terminates To Printed Circuit Board Configuration Features Number of Positions 11 Body Features Module Material Composite Contact Features Contact Type Pin Contact Current Rating (Max) 13 A Mechanical Attachment Connector Mounting Type Board Mount Housing Features Centerline (Pitch) 2.62 mm, 4.4 mm .103 in .173 in Usage Conditions 10/11/2021 04:20AM Page1 For support call+1 800 522 6752 732-8255-99 Rectangular Contact Inserts, Pin, Pin, Wire-to-Board, 11 Position, 2.62mm / 4.4mm . 103in / .173in Centerline, Sealable, Printed Circuit Board Usage Conditions Operating Temperature Range -55 175 C -67 347 F Operation/Application Circuit Application Power, Signal & High Speed Data Packaging Features Packaging Method Package Packaging Quantity 1 Product Compliance For compliance documentation, visit the product page on TE.com> EU RoHS Directive 2011/65/EU Compliant with Exemptions EU ELV Directive 2000/53/EC Out of Scope China RoHS 2 Directive MIIT Order No 32, 2016 Restricted Materials Above Threshold EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUL 2021 (219) Candidate List Declared Against: JUL 2021 (219) SVHC > Threshold: Pb (1.2% in alloy) Article Safe Usage Statements: Do not eat, drink or smoke when using this product. Wash thoroughly after handling. Recycle if possible and dispose of the article by following all applicable governmental regulations relevant to your geographic location. Halogen Content Low Halogen - Br, Cl, F, I < 900 ppm per homogenous material. Also BFR/CFR/PVC Free Solder Process Capability Not reviewed for solder process capability Product Compliance Disclaimer This information is provided based on reasonable inquiry of our suppliers and represents our current actual knowledge based on the information they provided. This information is subject to change. The part numbers that TE has identified as EU RoHS compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, DIBP, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked as required by Directive 2011/65/EU. Components may not be CE marked. Additionally, the part numbers that TE has identified as EU ELV compliant have a maximum concentration of 0.1% by weight in homogenous materials for lead, hexavalent chromium, and mercury, and 0.01% for cadmium, or qualify for an exemption to these limits as defined in the Annexes of Directive 2000/53/EC (ELV). Regarding the REACH Regulation, the information TE provides on SVHC in articles for this part number is based on the latest European Chemicals Agency (ECHA) Guidance on requirements for substances in articles posted at this URL:
