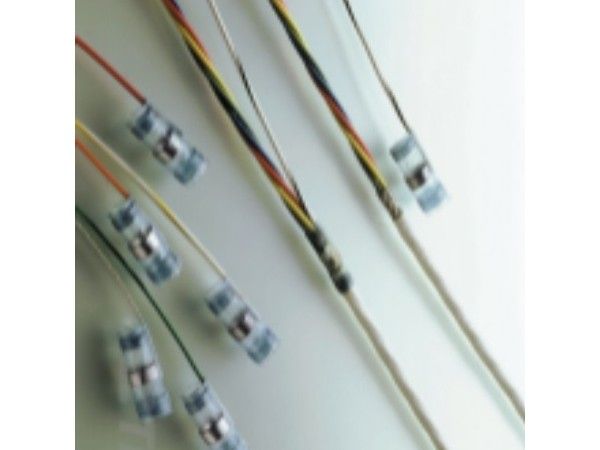

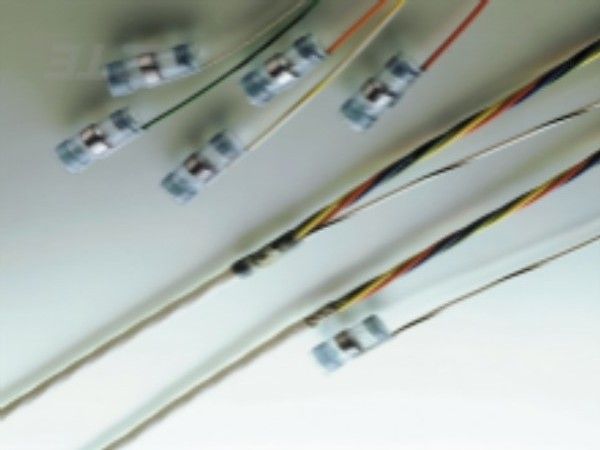

CUSTOMER DRAWING Product Dimensions Cable Dimensions Product Qty: A L D E F Name Item 2 min max max min min B-155-3803-WX 2.7 0.105 42.0 1.655 2.7 0.105 1.8 0.070 1.3 0.050 1 B-155-3805-WX 4.5 0.180 42.0 1.655 4.5 0.180 2.3 0.090 1.8 0.070 1 B-155-3806-WX 6.0 0.235 42.0 1.655 6.0 0.235 3.3 0.130 2.8 0.110 1 B-155-3807-WX 7.0 0.275 42.0 1.655 7.0 0.275 3.7 0.145 3.2 0.125 1 B-155-3809-WX 8.7 0.340 42.0 1.655 8.7 0.340 4.2 0.165 3.7 0.145 2 B-155-3811-WX 10.7 0.420 41.5 1.630 10.7 0.420 7.1 0.280 6.6 0.260 2 *Consult Tyco Electronics for individual product revision. Contains more than 1 part name. MATERIALS 1. INSULATION SLEEVE: Heat-shrinkable, transparent clear, radiation cross-linked modified polyolefin. 2. SOLDER PREFORM WITH FLUX. Qty: see table (one solder washer shown). SOLDER: TYPE Sn42Bi58 per ANSI / J-STD-006. FLUX: TYPE ROM1 per ANSI / J-STD-004. 3. MELTABLE RING: Thermally stabilized thermoplastic. Color: clear. 4. MELTABLE RING: Thermally stabilized thermoplastic. Color: blue. 5. GROUND LEAD: W1/W2: Raychem 35C0211 tin-plated copper W4/W5: MIL-W-81822/13 solid silver-plated copper. Part number: B-155-38XX-WX Ground lead type: W1: AWG22, color -white. W2: AWG22, color -green. W4: AWG26, color -white. W5: AWG26, color -blue. Sizes: from 03 to 11. APPLICATION 1. These controlled soldering devices are designed for termination of bare or tin-plated copper shield on a cable, rated for at least +85 C and meeting the dimensional criteria listed in the table above. 2. Temperature range: -55 C to +125 C. 3. When installed properly, it will meet the performance requirements of TE Connectivity/ Raychem Specification RT-1404. 4. For installation procedure and application equipment, consult RPIP-824-00. For best results, prepare the cable as shown: TITLE: SOLDERSLEEVE ONE-STEP SHIELD Raychem TERMINATION WITH PRE-INSTALLED DEVICES LEAD, LOW TEMPERATURE* DOCUMENT NO.: Unless otherwise specified dimensions are in millimeters. Inches dimensions are shown in brackets B-155-38XX-WX TOLERANCES: ANGLES: N/A TE Connectivity reserves the right to 0.00 N/A amend this drawing at any time. Users REV: DATE: 0.0 N/A ROUGHNESS IN should evaluate the suitability of the 2 21-Apr-2020 0 N/A MICRON product for their application. PREPARED BY: CAGE CODE: ECO NUMBER: SCALE: SIZE: SHEET: M. FORONDA 06090 ECO-20-005249 NTS A 1 of 1 2020 TE Connectivity Ltd. Family of Companies. All Rights Reserved. If this document is printed it becomes uncontrolled. Check for the latest revision. *TE Connectivity, TE connectivity (logo), Raychem, SolderSleeve are trademarks X-ON Electronics Largest Supplier of Electrical and Electronic Components Click to view similar products for Solder Sleeves & Shield Tubing category: Click to view products by TE Connectivity manufacturer: Other Similar products are found below : 899170-000 620040N001 620069N003 CTA-0050-01 629624-000 6500750004 6501390002 CX0781-000 696396-000 697080-000 D-150- 0331CS2902 D-181-1222-90/9CS2800 D-300-01CS1108 715325N001 908357N001 982127-1 D-436-0182CS246 D-436-37CS2651 D-436- 61CS246 D-436-82-CS2621 D-659-0087 E53797N001 CB0213-000 CB0219-000 S200-2-01 S200-4-00CS2904 LSS-81-16AA-CS5575 ST18-2-00 FLX40-020-04-CS8651 325534-000 CTA-0025 D-108-07CS436 D-128-0010 D-141-0108CS404 D-144-41CS1371 D-150-0231- NRCS2896 D-150-1011 395947-000 427243N001 B-801-18-01 515-9 C67137-000 CB0220-000 D-436-0185CS1102 D-436-36CS2908 D- 436-37CS2908 D-436-52CS246 D44133N001 LSS-26-8A 626168-000
