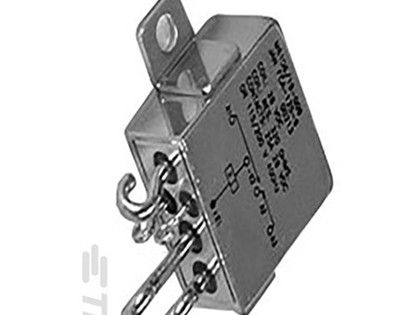

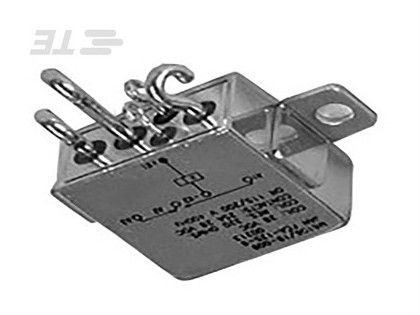

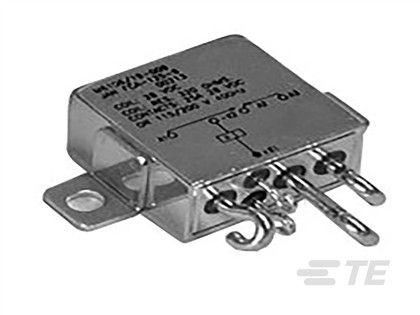

FCA-125 SERIES Tyco Electronics Mid-Range Military/Aerospace Relays 25 AMPERES, SPDT HERMETICALLY SEALED ALL WELDED CONSTRUCTION BALANCED FORCE PERMANENT MAGNET DRIVE CONTACTS: SILVER CADMIUM OXIDE WITH GOLD PLATING COILS FOR DC, 50 TO 400Hz AND 400Hz AC WEIGHT 1.6 OUNCES MAX. (45.4 GRAMS) * Meets new spec MIL-PRF-83536/36 and MIL-PRF-83536/37 The Series FCA-125 relay is a polarized single-side stable design, where the flux from a permanent magnet provides the armature holding force in the deactivated state, and its flux path is switched and combined with the coil flux in the operated state. This results in appreciably increased contact pressure in both states over that of a spring return nonpolar design. We also manufacture other versions of this relay: FCA-325: 25 AMPERE 3PDT RELAY FCAC-325: 25 AMPERE 3PST RELAY WITH 2 AMPERE, SPDT AUXILIARY CONTACTS CONTACT RATING-AMPERES Ratings Are Continuous Duty 115VAC LIFE (MIN.) 115VAC TYPE OF 28 VDC 3 400Hz CYCLES X 10 60Hz * LOAD Resistive 25 25 10 50 Inductive 12 10 10 Inductive 15 20 Motor 10 10 8 50 Lamp 5 5 50 * 60 Hz LOADS RATED FOR 10,000 OPERATIONS OVERLOAD CURRENT 50 AMPS DC, 80AMPS 400Hz RUPTURE CURRENT 60 AMPS DC, 100 AMPS 400Hz CONTACT MAKE BOUNCE 1 MILLISECOND AT NOMINAL VOLTAGE MAX. CONTACT DROP AT 25 AMPS: INITIAL 0.150 VOLTS. END OF LIFE 0.175 VOLTS 4 QPL APPROVED Qualified to MIL-R-6106/19*FCA-125 SERIES Tyco Electronics Mid-Range Military/Aerospace Relays 25 AMPERES, SPDT COIL DATA OVER TEMPERATURE RANGE DC RES. MUST HOLD NOMINAL FREQ. PICKUP OR DROPOUT OR COIL AC AMPS (B) VOLTAGE (C) VOLTAGES Hz BELOW VOLTS ABOVE VOLTS CODE 0.3 6 4.5 2.5 1 DC 20 0.75 12 9.0 4.5 2 DC 80 1.5 28 18.0 7.0 3 DC 320 1.5 28 18.0 7.0 4 (A) DC 320 2.5 48 32.0 14.0 5 DC 920 1.25 28 22.0 10.0 6 400Hz 180 mA 1.25 28 22.0 10.0 7 50/400Hz 100 mA 5.0 115 90.0 40.0 8 400 Hz 40 mA 5.0 115 95.0 40.0 9 50/400Hz 30 mA A. CODE 4 COILS HAVE BACK EMF SUPPRESSION D. MAX. OVERVOLTAGE: 6 & 12 VDC COILS 120% OF TO 42 VOLTS MAX. NOMINAL ALL OTHERS 110% OF NOMINAL. B. DC COIL RESISTANCE 10% AT 25C E. COILS AVAILABLE FOR OTHER VOLTAGES AND AC COIL MAX. CURRENT AT NOMINAL VOLTAGE. FOR AC 50/60HZ. C. RELAY WILL STAY IN PICKED-UP STATE DOWN TO MUST HOLD VOLTAGES SHOWN. NOTE: Only DC Coil Models are QPL Approved. GENERAL SPECIFICATIONS TEMPERATURE RATING: -70C TO + 125C ALTITUDE: 300,000 FEET SHOCK:* Z, Y, & X ENCLOSURES 200 g FOR 6 mS W & M ENCLOSURES (STUD MTG.) 100 g FOR 6 mS VIBRATION, SINUSOIDAL:* Z, Y, & X ENCLOSURES 30 g 33-3000Hz W & M ENCLOSURES (STUD MTG.) 20 g 33-3000Hz 2 VIBRATION, RANDOM: * Z, Y, & X ENCLOSURES 0.4 g /Hz 50-2000Hz 2 W & M ENCLOSURES (STUD MTG.) 0.2 g /Hz 50-2000Hz DIELECTRIC STRENGTH ALL CIRCUITS TO GROUND AND AT SEA LEVEL: CIRCUIT TO CIRCUIT. 1250 V rms COIL TO GROUND 1000 V rms DIELECTRIC STRENGTH AT 80,000 FEET: 350 V rms INSULATION RESISTANCE: INITIAL (500 VDC) 100 M MINIMUM AFTER LIFE OR ENVIRONMENTAL TESTS 50 M MINIMUM OPERATE TIME AT NOMINAL VOLTAGE: DC RELAYS 10 ms OR LESS AC RELAYS 15 ms OR LESS RELEASE TIME AT NOMINAL VOLTAGE: DC RELAYS 10 ms OR LESS AC RELAYS 50 ms OR LESS * Max. contact opening under vibration or shock 10 microseconds 5
