X-On Electronics has gained recognition as a prominent supplier of FLDWC0311-0.35-5 across the USA, India, Europe, Australia, and various other global locations. FLDWC0311-0.35-5 are a product manufactured by TE Connectivity. We provide cost-effective solutions for FLDWC0311-0.35-5, ensuring timely deliveries around the world.

FLDWC0311-0.35-5 TE Connectivity

Name: FLDWC0311-0.35-5
Brand: TE Connectivity
SKU: FLDWC03110355_TE Connectivity
Availability: OutOfStock
Rating: 5 (11 reviews)

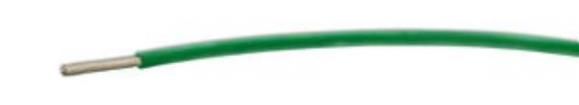

FLDWC0311-0.35-5 electronic component of TE Connectivity

Images are for reference only
See Product Specifications

Part No.	FLDWC0311-0.35-5
Manufacturer:	TE Connectivity
Category:	Unclassified
Description:	WIRE, GREEN, 0.35MM, 100M
Datasheet:	FLDWC0311-0.35-5 Datasheet (PDF)
	Large This product is classified as Large/Heavy, additional shipping charges may apply. A customer service representative may contact you after ordering to confirm exact shipping charges

Price (USD)

1: USD 105.9307 ea
Line Total: USD 105.93

Availability - 0

MOQ: 1 Multiples: 1
Pack Size: 1

FLDWC0311-0.35-5 More Buying Options & Price Grid(s)

Availability	Price	Buy Price	Quantity
0 Ship by Fri. 29 Nov to Thu. 05 Dec MOQ : 1 Multiples : 1	1 : USD 105.9307 5 : USD 90.1046 10 : USD 81.5547 25 : USD 78.826 100 : USD 73.1619 500 : USD 64.3143

Specifications

Manufacturer TE Connectivity TE Connectivity
Product Category Unclassified Unclassified
Wire Gauge 22Awg 22Awg
Conductor Area Csa 0.35Mm² 0.35Mm²
Voltage Rating 600 V 600 V
Jacket Colour Green Green
Reel Length Imperial 328 ft 328 ft
Reel Length Metric 100 m 100 m
No Of Max Strands X Strand Size 19 X 0.15Mm 19 X 0.15Mm
External Diameter 1.42 mm 1.42 mm
Conductor Material Copper Copper
Jacket Material Pvdf Pvdf
Approval Specification - -
Svhc No Svhc (17 - Dec - 2014) No Svhc (17 - Dec - 2014)
Approval Category Ul 3584 Ul 3584
Cable Diameter Max 1.42 mm 1.42 mm
Cable Diameter Min 1.31 mm 1.31 mm
Cable Ul Style Number Ul3584 Ul3584
Conductor Diameter Max 0.77 mm 0.77 mm
Conductor Diameter Min 0.72 mm 0.72 mm
Conductor Make-Up 19 / 0.15Mm 19 / 0.15Mm
Dielectric Strength Vac 2.5K V 2.5K V
Flammability Rating Ul94v - 1 Ul94v - 1
Operating Temperature Max 125 C 125 C
Operating Temperature Min - 45 C - 45 C
Outer Diameter 1.37 mm 1.37 mm
Primary Conductor Resistance 56.1 Ohms /km 56.1 Ohms /km
Secondary Insulation Colour Green Green
Secondary Insulation Material Radiation Crosslinked Modified Pvf2 Radiation Crosslinked Modified Pvf2
Voltage Rating V Ac 600 V 600 V

We are delighted to provide the FLDWC0311-0.35-5 from our TE Connectivity manufacturer, at competitive rates not only in the United States, Australia, and India, but also across Europe and beyond. A long established and extensive electronic component distribution network has enhanced our global reach and dependability, ensuring cost savings through prompt deliveries worldwide. Client satisfaction is at the heart of our business, where every component counts and every customer matters. Our technical service team is ready to assist you. From product selection to after-sales support, we strive to deliver a seamless and satisfying experience. Are you ready to experience the best in electronic component distribution? Contact X-ON Electronics today and discover why X-On are a preferred choice for the FLDWC0311-0.35-5 and other electronic components in the TE Connectivity manufacturer and beyond.
