1-1617110-7

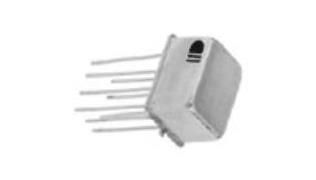

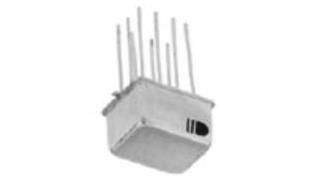

TO-5/.100 Grid Relays, Contact Arrangement 2 Form C, DPDT, 2 C/O, 2.9VDC Input
Voltage, Coil Suppression Diode, With MOSFET Driver
1-1617110-7 ACTIVE
CII
TE Internal #: 1-1617110-7
TO-5/.100 Grid Relays, Contact Arrangement 2 Form C, DPDT, 2 C
/O, 2.9VDC Input Voltage, Coil Suppression Diode, With MOSFET
Driver
View on TE.com>
Relays, Contactors & Switches > Relays > Mil-Aero Relays > TO-5/.100 Grid Relays
Contact Arrangement: 2 Form C, DPDT, 2 C/O
Input Voltage: 2.9 VDC
Coil Suppression Diode: With
MOSFET Driver: With
Transistor Driver: Without
Features
Product Type Features
Enclosure Type Hermetically Sealed
Relay Type Military/Aerospace High Performance
Coil Latching Without
Product Type Relay
MOSFET Driver With
Configuration Features
Transistor Driver Without
Electrical Characteristics
Coil Magnetic System Non-Polarized, Monostable
Vibration 30G's, 10 3000Hz
Actuating System DC
Shock 75G's, 6ms
Coil Power Measurement Milliwatts
Input Voltage 2.9 VDC
Coil Suppression Diode With
Coil Voltage 5 VDC
Coil Resistance 100
Coil Power Rating (DC) 250 mW
09/30/2020 09:51AM | Page1
For support call+1 800 522 6752
1-1617110-7
TO-5/.100 Grid Relays, Contact Arrangement 2 Form C, DPDT, 2 C/O, 2.9VDC Input
Voltage, Coil Suppression Diode, With MOSFET Driver
Coil Power Rating (DC) 250 mW
Coil Polarity Protection Diode Without
Contact Switching Voltage (Max) 28
Contact Features
Contact Current Class Low Level 1 A
Contact Arrangement 2 Form C, DPDT, 2 C/O
Contact Current Rating 1 A
Termination Features
Termination Type PC Pins
Mechanical Attachment
Mounting Type Printed Circuit Board
Usage Conditions
Operating Temperature Range -65 125 C
Product Compliance
For compliance documentation, visit the product page on TE.com>
EU RoHS Directive 2011/65/EU Not Compliant
EU ELV Directive 2000/53/EC Not Compliant
China RoHS 2 Directive MIIT Order No 32, 2016 Restricted Materials Above Threshold
EU REACH Regulation (EC) No. 1907/2006 Current ECHA Candidate List: JUN 2020
(209)
Candidate List Declared Against: JUL 2019
(201)
Does not contain REACH SVHC
Halogen Content Low Halogen - Br, Cl, F, I < 900 ppm per
homogenous material. Also BFR/CFR/PVC
Free
Solder Process Capability Not lead free process capable
