VERSAFLEX-FR-3/8-09-SP TE Connectivity

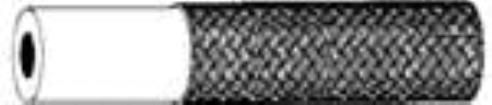

Heat-shrinkable Tubing RAYCHEM Tubing Products Versaflex 1 Expandable, Braided, Polyester Sleeving Product Facts Excellent abrasion and cut- through resistance Lightweight Flexible (even at low temperatures) Fungus proof Not affected by most chemical and solvents, non-hygroscopic Versaflex-FR sleeving meets UL VW-1 and is self- extinguishing Wide range of sizes available RoHS compliant Applications means for wire bundling Installation that will not trap heat or Versaflex sleeving is suited This product is cold moisture expanding easily for the mechanical protec- applied. to fit over irregular shapes, tion of wire harnesses, then contracting to conform hoses, and all other appli- and grip. To prevent Operating Temperature Range cations where exceptional fraying, these products flexibility combined with -50C to 150C should be cut to length superior abrasion/cut resist- -58F to 302F using a hot knife. ance is required. It also (220C -58F to 302F for serves as an economical short periods) Specifications/Approvals Series UL Raychem Versaflex-FR E306976 VW-1, 125C Versaflex RK-6772 Available in: Americas Europe Asia Pacific 1-139 Catalog 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000 Revised 01-09 millimeters unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 www.tycoelectronics.com are metric equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341RAYCHEM Tubing Products Versaflex (Continued) Product Dimensions Versaflex (metric) Nominal Size Size Range Minimum Maximum 3 (0.118) 1 (0.039) 5 (0.197) 4 (0.158) 2 (0.079) 7 (0.276) 5 (0.197) 3 (0.118) 9 (0.354) 6 (0.236) 4 (0.158) 12 (0.472) 8 (0.315) 5 (0.197) 12 (0.472) 10 (0.394) 7 (0.276) 15 (0.591) 12 (0.472) 8 (0.315) 17 (0.669) 15 (0.591) 10 (0.394) 20 (0.787) 20 (0.787) 14 (0.551) 26 (1.024) 25 (0.984) 18 (0.709) 34 (1.339) 30 (1.181) 20 (0.787) 40 (1.575) 40 (1.575) 30 (1.181) 50 (1.969) 50 (1.969) 40 (1.575) 60 (2.362) Versaflex (Imperial) Size Nominal Size Size Range 1/8 3 (0.118) 2.4 6.4 (0.094 0.252) 1/4 6 (0.236) 3.2 9.5 (0.125 0.375) 3/8 10 (0.394) 4.7 16 (0.185 0.630) 1/2 13 (0.512) 6.4 19 (0.252 0.748) 3/4 19 (0.748) 13 32 (0.512 1.260) 1-1/4 32 (1.256) 19 45 (0.748 1.772) 1-3/4 45 (1.772) 32 70 (1.260 2.756) 2 51 (2.008) 38 76 (1.496 2.992) Versaflex-FR flame retardant, expandable polyester braid Size Nominal Size Size Range 1/8 3 (0.118) 2.4 6.4 (0.094 0.252) 1/4 6 (0.236) 3.2 9.5 (0.125 0.375) 3/8 10 (0.394) 4.7 16 (0.185 0.630) 1/2 13 (0.512) 6.4 19 (0.252 0.748) 3/4 19 (0.748) 13 32 (0.512 1.260) 1-1/4 32 (1.256) 19 45 (0.748 1.772) 1-3/4 45 (1.772) 32 70 (1.260 2.756) 2 51 (2.008) 38 76 (1.496 2.992) Ordering Information Color Standard Versaflex (metric) : Black (-0) Grey (-8) Versaflex (imperial) : Black (-0) Versaflex-FR : Black with a white X tracer (-09) Standard packaging On spools. Ordering description Specify product name, size and color (for example, VERSAFLEX-FR-1/4-09-SP) 1-140 Catalog 9-1773447-9 Dimensions are in inches and Dimensions are shown for USA: 1-800-522-6752 South America: 55-11-2103-6000 Revised 01-09 millimeters unless otherwise reference purposes only. Canada: 1-905-470-4425 Hong Kong: 852-2735-1628 specified. Values in brackets Specifications subject Mexico: 52-55-1106-0800 Japan: 81-44-844-8013 www.tycoelectronics.com are metric equivalents. to change. C. America: 57-1-254-4444 UK: 44-208-420-8341
