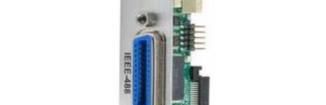

DMM6500 6-Digit Bench/System Digital Multimeter Datasheet Key Features 15 measurement functions including capacitance, temperature, and digitizing Expanded measurement ranges include 10 pA to 10 A and 1 m to 100 M Large 5-inch (12.7 cm) multi-touch capacitive touchscreen with graphical display Large internal memory store up to 7 million readings Multiple language modes: SCPI, TSP scripting, Keithley 2000 SCPI emulation, Keysight 34401A SCPI emulation The DMM6500 is a modern bench/system DMM Two-year specifications allow for longer delivering more measurement functionality, best-in-class calibration cycles measurement insight, and a price that will not break your Standard USB-TMC and LXI/Ethernet communication budget. The most recognizable feature of the DMM6500 interfaces is the large 5-inch (12.7 cm) capacitive touch screen Optional user-installable communication interfaces display that makes it easy to observe, interact with, and including: GPIB, TSP-Link , and RS-232 explore measurements with pinch and zoom simplicity. Capture voltage or current transients with Beyond its display technology, the DMM 6500 superior 1 MS/sec digitizer analog measurement performance delivers 25 PPM basic DCV accuracy for one year and 30 PPM for two years, USB host port for storing readings, instrument potentially allowing you to extend your calibration cycles. configurations, and screen images Three-year warranty The DMM6500 is equipped with all the measurement functions you would expect in a bench multimeter, so theres no need to buy additional measurement capabilities. Its 15 measurement functions, including capacitance, temperature (RTD, thermistor, and thermocouple), diode test with variable current sources, and up to 1 MS/sec digitizing are now included. The digitizing function can be used for voltage or current and is especially useful in capturing transient anomalies or to help profile power events such as the operating states of todays battery operated devices. Current and voltage can be digitized with a programmable 1 MS/sec 16-bit digitizer, making it possible to acquire waveforms without Analyze complex the need for a separate instrument. waveforms with the touchscreen display.Datasheet Capture and Analyze Voltage or Current Transitions Power analysis is becoming more important in todays electronic designs. Designers must now consider more efficient components and complex system design typically requiring multiple power states. The DMM6500 has the tools you need to help design and troubleshoot these complex systems. Eight different current ranges allow measurements from 10 amps down to 10 pico-amps, giving you the dynamic range to measure your power states. In addition, a built-in 1 MS/sec digitizing function can help capture transient events, allowing you to see and analyze transitions as they occur. Pinch and zoom simplicity for in-depth waveform analysis. Visualize and analyze waveforms using adjustable cursors and statistics. DMM6500 Measurement Capabilities Logarithmic Scale 1 f 1 p 1 n 1 1 m 1 1 k 1 M 1 G DC Voltage 100 nV 1010 V AC Voltage 100 nV 750 VRMS DC Current 10 pA 10.1 A AC Current 100 pA 10.1 A Resistance (2-wire) 10 120 M Resistance (4-wire) 1 120 M Capacitance 0.1 pF 120 F Period 3.3 s 333 ms Frequency 3 Hz 300 kHz Diode 10 V 12 V (Selectable: 10 A / 100 A / 1 mA / 10 mA source) Digitize Voltage 10 V 1010 V Digitize Current 10 nA 10.1 A Linear Scale Thermocouple 200C 1820C Thermistor 80C 150C 2-, 3-, 4-Wire RTD 200C 850C 500 0 500 1000 1500 2000 DMM6500 15 measurement functions and ranges. 2 TEK.COM
