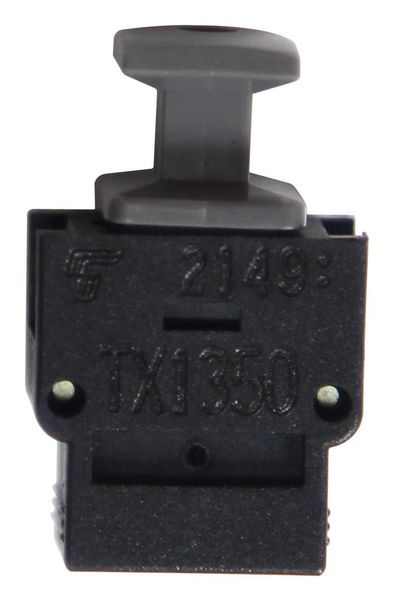

TOTX1350(F) FIBER OPTIC TRANSMITTING MODULE TOTX1350(F) GENERAL PURPOSE OPTICAL TRANSMITTING MODULE JIS F05 type fiber optic connector 650 nm LED Low current LED drive 1. Absolute Maximum Ratings (Ta = 25C) Characteristics Symbol Rating Unit Storage Temperature Tstg 40 to 95 C Operating Temperature T 40 to 85 C opr Forward Current (DC) IFDC 30 mA Reverse Voltage V 5 V R Soldering Temperature T 260 (Note 1) C sol Note 1: Soldering time 10 s (More than 1 mm apart from the package). Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature , etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/ current/ voltage, etc.) are within the absolute maximum ratings. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (Handling Precautions/ Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc.). 2. Operating Ranges Characteristics Symbol Min Typ. Max Unit Forward Current (DC) I - 6 8 mA F Data Rate DC - 10 Mb / s Start of commercial production 2013-11 2015-2020 2020-03-12 Toshiba Electronic Devices & Storage Corporation 1 TOTX1350(F) 3. Electrical and Optical Characteristics (Ta = 25C, VCC = 5 V) Characteristics Symbol Test Condition Min Typ. Max Unit Data Rate (Note 2) NRZ Code DC - 10 Mb / s APF (Note 3), IF = 6 mA, Using TORX1350A(F) 40 - 100 m Transmission Distance (Note 2) APF (Note 3), IF = 1.5 mA, Using TORX1350A(F) 0.2 - 50 m - APF (Note 3), IF = 6 mA, Using TORX1355(F) 0.2 10 m IF = 6 mA, Using TORX1350A(F) and TOCA1300 - - mm 23.6 IF = 6 mA, Using TORX1355(F) and TOCA1300 Transmission Distance (Note 2) (Note 4) IF = 6 mA, Using TORX1350A(F) and TOCA1301 - - mm 34.0 IF = 6 mA, Using TORX1355(F) and TOCA1301 - Pulse Width Distortion (Note 5) tw -30 30 % - IF = 6 mA, Using APF (Note 3), - 6 -2 dBm Fiber Output Power (Note 6) P f IF = 1.5 mA, Using APF (Note 3), -13 - -8 dBm - Center Emission Wavelength c 650 - nm - IF = 6 mA V 2.0 2.1 Forward Voltage V F - IF = 1.5 mA 1.8 2.0 V Reverse Current IR VR = 5 V - - 10 A Note 2: Use the drive circuit of Chapter 4. Note 3: All Plastic Fiber (980 m core / 1000 m cladding, NA = 0.5). Polished surface. Transmission loss is less than 0.18 dB/m. (100m 650nm). Note 4: A distance between fixing pin of TOTX1350(F) and fixing pin of TORX1350A(F) or TORX1355(F) when they connect with optical adapter (TOCA1300 or TOCA1301). Note 5: Between input of driver circuit of TOTX1350(F) and output of TORX1350A(F) or TORX1355(F). Use the drive circuit of Chapter 4. Note 6: Measure with a standard optical fiber with fiber optic connectors. Valued by peak. 2015-2020 2020-03-12 Toshiba Electronic Devices & Storage Corporation 2
