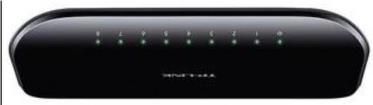

8-Port Gigabit Desktop Switch TL-SG1008D Features: 8 10/100/1000 Mbps Ethernet ports Innovative energy-e cient technology Supports IEEE 802.3x ow control for Full Duplex mode and backpressure for Half Duplex mode Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware Auto-MDI/MDIX eliminates the need for crossover cables 15KByte Jumbo frame improves performance of large data transfers Desktop or wall-mounting design Plug and Play design simpli es installation Description: The TL-SG1008D Gigabit Desktop Switch provides you an easy way to upgrade your network to 1000Mbps network. Since all ports supports auto MDI/MDIX, theres no need to worry about the cable type to use. Moreover, with the innovative energy-efficient technology, TL-SG1008D can save up to 80% of the power consumption, making it an eco-friendly solution for your business network. Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are www.tp-link.com trademarks or registered trademarks of their respective holders. Copyright 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved. 5/8-Port Gigabit Desktop Switch TL-SF1005D Specifications: Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x Interface 8 10/100/1000Mbps RJ45 Ports, Auto-Negotiation, Auto MDI/MDIX Half and Full Duplex Switching Features MAC Address Learning Transfer Method Store and Forward 10BASE-T: 14880pps/port Forwarding Rates 100BASE-TX: 148800pps/port 1000BASE-T:1488000pps/port Switching Capacity 16Gbps Mac Address Table 8k Jumbo Frame 15KByte Power Saving 80% Per Unit: Power Per Port: Link/Act LEDs Power Supply External Power Adapter (Output: 9V 0.6A) CE, FCC, RoHS Dimensions 7.1 * 3.5 * 1.0 in. (180 * 90 * 25.5 mm) Operating Temperature: 0C~40C (32F~104F) Storage Temperature: -40C~70C (-40F~158F) Environment Operating Humidity: 10% ~ 90%, non-condensing Storage Humidity: 5%~90% non-condensing Diagram: Package: - 8-Port Gigabit Desktop Switch TL-SG1008D - Power Adapter - Installation Guide LAPTOP Related Products: - 300Mbps Wireless N ADSL2+ Modem Router 300Mbps Wireless N Desktop Switch TD-W8961N ADSL2+ Modem Router TL-SG1008D TD-W8961N - Load Balance Broadband Router TL-R470T+ DESKTOP - 8-Port 10/100Mbps Desktop Switch TL-SF1008D - 16-Port 10/100Mbps Desktop Switch TL-SF1016D 8 GIGABIT ETHERNET PORTS POWER Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK Technologies Co., Ltd. Other brands and product names are www.tp-link.com trademarks or registered trademarks of their respective holders. Copyright 2015 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
