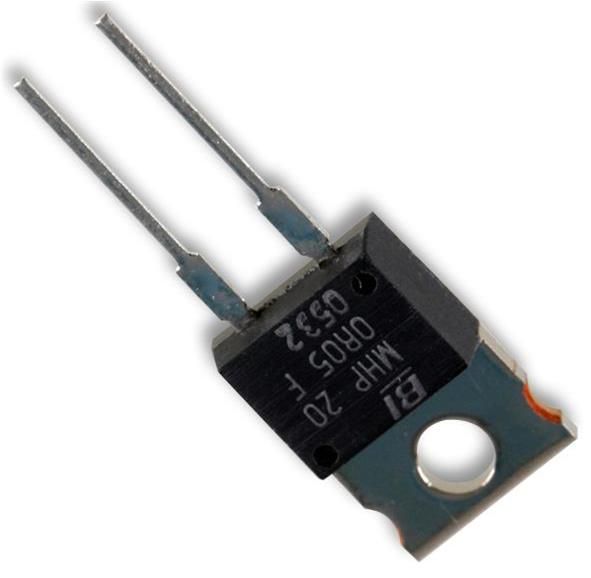

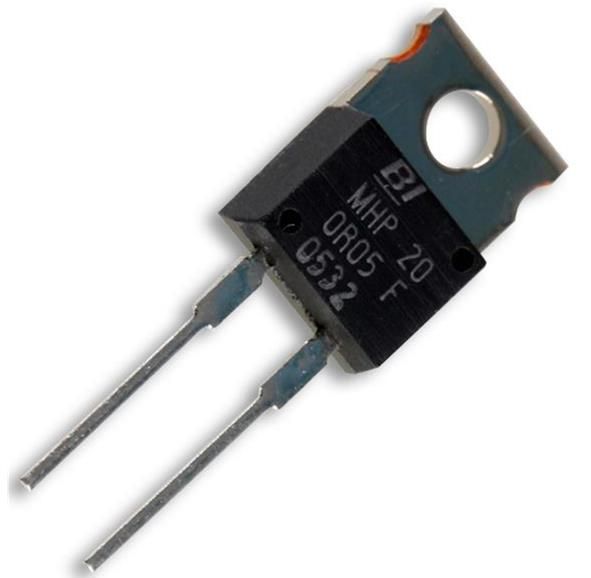

20W TO-220 HIGH POWER RESISTORS Features. Non-inductive. Thermally enhanced Industry standard TO220 package. RoHS compliant. Low thermal resistance, 5.9 C/W resistor hot spot to metal tab. Complete thermal flow design available for easy implementation. Superior vibration durability. Small thin package for high density PCB installation. Applications High frequency circuits and high speed pulse designs. Switch mode power supplies. Motor control and drive circuits. Automotive. Industrial computing and measurement systems. Specification Dimensions A C dia.M D MHP J E G H F A B C D E F G H J K L M N 10.6 15.0 4.5 1.5 2.7 5.08 0.75 0.5 1.5 19.0 2.7 3.6 15.0 Specification Item Specifications Test Conditions Power Rating 20 Watts -55 to 25 C flange temperature Power Rating 2.25 Watts Free air. Thermal Resistance 5.9 C/W Hot spot to Tab Resistance Range 0.01-0.09 0.1-9.1 10-220 Up to 51 K also available Nominal Resistance Series E6 E12 E24 2.5 and 5.0 also available TCR 250 ppm/ C 100 ppm/ C 50 ppm/ C -55 to +155 C Tolerance +/- 5% (J) 5% (J) +/-1% (F) Operation Temp. Range -55 C to+155 C Max. Operating Volt. 500V or P.R Dielectric Withstanding Voltage 2000 Volts AC 60 seconds. Load Life R +/-(1.0 %+0.05 ) 25 C, 90 min. ON, 30 min . OFF, 1000 hours. Humidity R +/- (1.0 %+0.05 ) 40C, 90-95% RH, DC 0.1 W, 1000 hours. Temp. Cycle R +/- (0.25 %+0.05 ) -55 C,30 min.,+155 C,30 min., 5 cycles Soldering Heat R +/- (0.1 %+0.05 ) 250+/-5 C, 3 seconds, Solder ability Over 95% of surface 230+/-5 C, 3 seconds. Insulation Resistance Over 1,000 M Between terminals and tab. Vibration R +/- (0.25 %+0.05 ) . Specifications subject to change without notice 1 L N B KMHP 20 20W TO-220 High power resistors Temperature Rise(C) Temperature Rise Derating Curve Power (Watts) 140 MHP 20 500 F 120 100 +25C 20 80 15 60 10 40 20 5 +155C 0 0 0 10 20 -50 0 50 100 150 200 Power (Watts) Flange Temperature (C) Pulse Energy Durability Frequency Characteristics Impedance (ohms) Pulse Peak (Watts), 10K 10K MHP 20 10K0 F MHP 20 100F MHP 20 1K0 F 1K 1K MHP 20 101 F 100 100 MHP 20 500 F MHP 20 220F 10 10 10K 100K 1M 10M 100M 1 10 100 1m 10m 100m 1G Pulse With (seconds) Notes: (1) Electrically isolated metal tab. (2) Recommend the use of thermal grease between metal tab and heat sink. (3) Thermal design should account for a thermal resistance between resistor and tab of 5.9 C/W and a maximum resistor temperature of 155C. (4) Current rating: 25A maximum. (5) Surface mount package also available, please call factory. Ordering Information MHP 20 500 F Model Resistance Code Tolerance 0.1 : 0R100 J = 5% Tol 50 : 500 First two digits significant, last digit: number of trailing zeros F = 1% Tol 2
