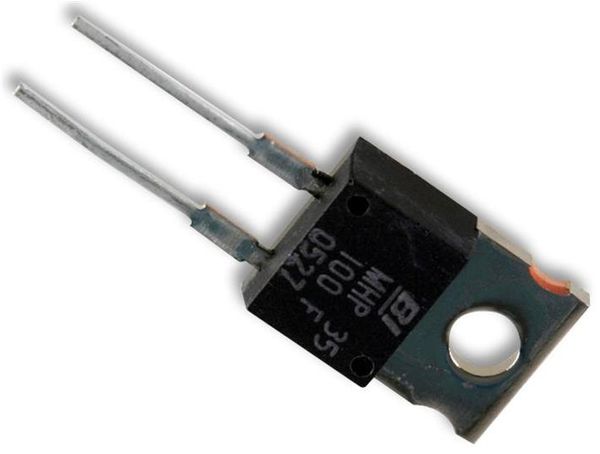

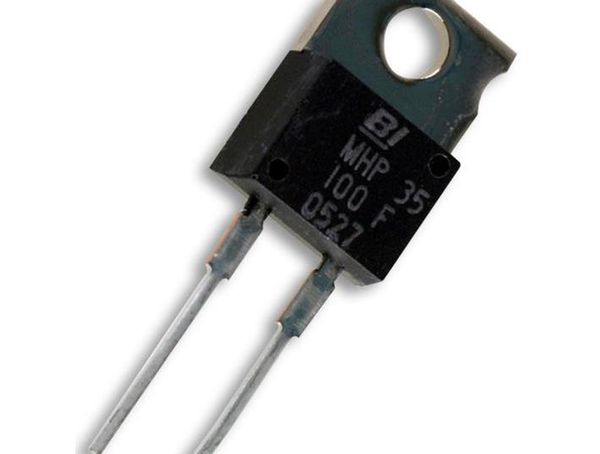

35W TO-220 HIGH POWER RESISTORS Features. Non-inductive, thin film technology. Thermally enhanced Industry standard TO220 package. RoHS compliant. Low thermal resistance, 3.3 C/W resistor hot spot to metal tab. Complete thermal flow design available for easy implementation. Superior vibration durability. Small thin package for high density PCB installation. Applications High frequency circuits and high speed pulse designs. Switch mode power supplies. Motor control and drive circuits. Automotive. Industrial computing and measurement systems. Specification Dimensions A C dia.M D MHP J E G H F A B C D E F G H J K L M N 10.6 15.0 4.5 1.5 2.7 5.08 0.75 0.5 1.5 19.0 2.7 3.6 15.0 Specification Item Specifications Test Conditions Power Rating 35 Watt -55 to 25 C flange temperature Power Rating 2.25 Watt Free air. Thermal Resistance 3.3 C/W Hot spot to Tab Resistance Range 0.01-0.09 0.1-9.1 10-220 Up to 51 K also available Nominal Resistance Series E6 E12 E24 2.5 and 5.0 also available TCR 250 ppm/ C 100 ppm/ C 50 ppm/ C -55 to +155 C Tolerance +/- 5% (J) +/-1% (F) & 5% (J) +/-1% (F) Operation Temp. Range -55 C to+155 C Max. Operating Volt. 500V or P.R Dielectric Withstanding Voltage 2000 Volts DC 60 seconds. Load Life R +/-(1.0 %+0.05 ) 25 C, 90 min. ON, 30 min . OFF, 1000 hours. Humidity R +/- (1.0 %+0.05 ) 40C, 90-95% RH, DC 0.1 W, 1000 hours. Temp. Cycle R +/- (0.25 %+0.05 ) -55 C,30 min.,+155 C,30 min., 5 cycles Soldering Heat (Max) R +/- (0.1 %+0.05 ) 250+/-5 C, 3 seconds, Solderability Over 95% of surface 230+/-5 C, 3 seconds. Insulation Resistance Over 1,000 M Between terminals and tab. Vibration R +/- (0.25 %+0.05 ) Note: Specifications subject to change without notice. For resistances from 220 to 51k the power rating shall be restricted to 20W. 1 L N B KMHP 35 35W TO-220 High power resistors Derating Curve Temperature Rise Rating Power (W) Temperature Rise (C) MHP 35 1K0 F MHP 35 500 F 120 +25C 40 100 30 80 20 60 10 40 +155C 0 20 -50 0 50 100 150 200 Flange Temperature ( C) 0 10 20 30 Power (Watt) Pulse Energy durability Impedance (ohms) Frequency Characteristics Pulse Peak (Watts) 10K 10K MHP 35 10K0 F MHP 35 100F MHP 35 1K0 F 1K 1K MHP 35 101 F 100 100 MHP 35 500 F MHP 35 220F 10 10 10K 100K 1M 10M 100M 1G 1 10 100 1m 10m 100m Frequency (Hz) Pulse Width (s) Notes: (1) Electrically isolated metal tab. (2) Recommend the use of thermal grease between metal tab and heat sink. (3) Thermal design should account for a thermal resistance between resistor and tab of 3.3 C/W and a maximum resistor temperature of 155C. (4) Resistances greater than 220 are available, please call factory. (5) Surface mount package also available, please call factory. (6) Current rating: 25A maximum Ordering Information MHP 35 500 F Model Resistance Code Tolerance 0.1 : 0R100 J = 5% Tol 50 : 500 First two digits significant, last digit: number of trailing zeros F = 1% Tol 2
