268515C Van Damme

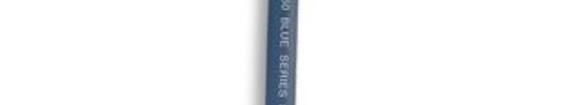

cable Blue Series Studio Grade speaker cable Van Damme Blue Series Studio Grade Speaker Cable caters not only for the recording studio environment but also for the rehearsal studio, live and presentation markets. All are twin-axial types and range from 0.75mm conductors for 100V line through to 6.00mm conductors for long runs of low impedance speaker signals. Applications Critical studio monitoring Guitar amplier to speaker leads Installations where low smoke zero halogen is not a requirement Application notes Conductors use ne stranding for ultimate exibility Reduced OD 2 x 2.5mm will t XLR connectors and mono jacks Ultra pure oxygen free copper for outstanding sonic integrityblue speaker series Overall Mechanical specication Conductor Bare ultra pure oxygen free copper Insulation PVC Overall jacket Flexible PVC composite sapphire blue RAL 5003 Working voltage 300/500V Test voltage 2000V DC 1 minute Halogen Emissions 0.30% Halogen acid gases according to IEC 60754-2 Characteristics by stock code 2 Conductor (twin-axial) cables Stock code Description Overall diameter Weight Kg/km Conductor stranding Conductor resistance Ohm/Km 268-575-060 2 x 0.75mm twin-axial 5.60mm 52 42 x 0.15mm 24.50 268-515-060 2 x 1.50mm twin-axial 6.50mm 78 84 x 0.15mm 12.50 268-525-060 2 x 2.50mm twin-axial 7.60mm 122 147 x 0.15mm 7.30 268-545-060 2 x 4.00mm twin-axial 11.00mm 162 227 x 0.15mm 4.60 268-565-060 2 x 6.00mm twin-axial 14.00mm 250 189 x 0.20mm 3.20 Maximum reel length 500 metres
