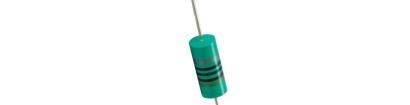

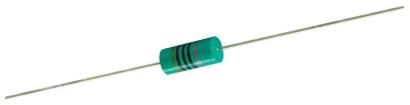

Not for New Designs IMS-5 Vishay Dale Inductors, Commercial, Molded, Shielded, Axial Leaded FEATURES Wide inductance range in small package Flame retardant coating ELECTRICAL SPECIFICATIONS Electromagnetic shield-finest shield available Inductance Tolerance: 10 % standard, 5 % available Precision performance, excellent reliability, Insulation Resistance: 1000 M minimum per sturdy construction MIL-STD-202, method 302, test condition B Epoxy molded construction provides superior moisture Dielectric Withstanding Voltage: 1000 V per protection AC MIL-STD-202, method 301 (at sea level) Material categorization: for definitions of compliance Percent Coupling: 3 % maximum per MIL-PRF-15305 please see www.vishay.com/doc 99912 Operating Temperature: -55 C to +105 C MECHANICAL SPECIFICATIONS Terminals: 5 lb pull per MIL-STD-202, method 211, test ENVIRONMENTAL PERFORMANCE condition A TEST CONDITIONS SPECIFICATIONS Weight: IMS-5 = 0.85 g maximum Barometric C MIL-STD-202, method 105 Pressure MATERIAL SPECIFICATIONS Thermal Shock A-1 MIL-STD-202, method 107 Encapsulant: Epoxy Flammability - MIL-STD-202, method 111 Standard Terminals: 22 AWG, tinned copper Overload - MIL-PRF-15305 Low Temperature INDUCTANCE RANGE AND MILITARY STANDARD - MIL-PRF-15305 Storage INDUCTANCE RANGE (H) MATERIAL Resistance to A MIL-STD-202, method 210 MIN. MAX. CORE SHIELD Soldering Heat 0.10 0.82 Phenolic Powdered iron Resistance to - MIL-STD-202, method 215 Solvents 1.0 12 Powdered iron Powdered iron 15 8200 Ferrite Ferrite DIMENSIONS in inches millimeters 1.44 0.188 36.57 4.78 0.025 0.002 0.162 0.010 0.410 0.020 0.635 0.051 4.11 0.254 10.41 0.508 STANDARD ELECTRICAL SPECIFICATIONS RATED DC INCREMENTAL IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. CURRENT CURRENT (1) (2) (3) MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) (mA) IMS-5 0.10 10 50 25.0 250.0 0.025 1790 - IMS-5 0.12 10 51 25.0 250.0 0.034 1530 - IMS-5 0.15 10 51 25.0 250.0 0.037 1470 - IMS-5 0.18 10 50 25.0 250.0 0.047 1300 - IMS-5 0.22 10 49 25.0 250.0 0.067 1100 - IMS-5 0.27 10 47 25.0 250.0 0.11 855 - IMS-5 0.33 10 46 25.0 250.0 0.13 780 - IMS-5 0.39 10 44 25.0 250.0 0.18 670 - IMS-5 0.47 10 44 25.0 235.0 0.25 565 - IMS-5 0.56 10 43 25.0 210.0 0.33 490 - IMS-5 0.68 10 42 25.0 190.0 0.45 420 - IMS-5 0.82 10 40 25.0 180.0 0.59 370 - Notes (1) Measured with full length lead (2) Rated DC current: Based on maximum temperature rise not to exceed 15 C at +90 C ambient (3) Incremental current: The minimum typical current at which the inductance will be decreased by 5 % from its initial zero DC value For technical questions, contact: magnetics vishay.com www.vishay.com Document Number: 34048 Revison: 07-Feb-17 1Not for New Designs IMS-5 www.vishay.com Vishay Dale STANDARD ELECTRICAL SPECIFICATIONS RATED DC INCREMENTAL IND. TOL. Q TEST FREQUENCY L AND Q SRF MIN. DCR MAX. CURRENT CURRENT (1) (2) (3) MODEL (H) (%) MIN. (MHz) (MHz) ( ) (mA) (mA) IMS-5 1.0 10 44 25.0 140.0 0.07 1070 - IMS-5 1.2 10 44 7.9 130.0 0.10 895 - IMS-5 1.5 10 44 7.9 115.0 0.12 815 - IMS-5 1.8 10 44 7.9 105.0 0.14 775 - IMS-5 2.2 10 44 7.9 100.0 0.19 650 - IMS-5 2.7 10 44 7.9 92.0 0.28 535 - IMS-5 3.3 10 44 7.9 85.0 0.35 480 - IMS-5 3.9 10 44 7.9 75.0 0.40 450 - IMS-5 4.7 10 44 7.9 70.0 0.55 380 - IMS-5 5.6 10 44 7.9 65.0 0.72 335 - IMS-5 6.8 10 50 7.9 55.0 1.02 280 - IMS-5 8.2 10 50 7.9 50.0 1.32 250 - IMS-5 10 10 50 7.9 46.0 1.62 220 - IMS-5 12 10 55 2.5 44.0 2.00 200 - IMS-5 15 10 45 2.5 49.0 0.80 315 250.0 IMS-5 18 10 45 2.5 45.0 0.89 300 235.0 IMS-5 22 10 45 2.5 41.0 0.96 290 220.0 IMS-5 27 10 45 2.5 38.0 1.19 260 200.0 IMS-5 33 10 45 2.5 34.0 1.37 240 190.0 IMS-5 39 10 50 2.5 29.0 1.93 205 180.0 IMS-5 47 10 50 2.5 27.0 2.11 195 175.0 IMS-5 56 10 50 2.5 25.0 2.23 190 160.0 IMS-5 68 10 50 2.5 21.0 2.70 170 150.0 IMS-5 82 10 50 2.5 10.5 2.44 180 140.0 IMS-5 100 10 50 2.5 10.0 3.12 160 120.0 IMS-5 120 10 55 0.79 9.7 3.6 150 95.0 IMS-5 150 10 55 0.79 8.5 4.1 140 90.0 IMS-5 180 10 55 0.79 8.0 4.4 135 85.0 IMS-5 220 10 55 0.79 7.5 5.0 125 80.0 IMS-5 270 10 55 0.79 7.0 5.8 115 70.0 IMS-5 330 10 55 0.79 6.5 6.4 110 65.0 IMS-5 390 10 60 0.79 6.2 7.4 105 60.0 IMS-5 470 10 60 0.79 5.7 9.5 92 58.0 IMS-5 560 10 60 0.79 4.7 10.5 90 55.0 IMS-5 680 10 60 0.79 4.5 11.8 80 50.0 IMS-5 820 10 60 0.79 4.2 13.0 80 45.0 IMS-5 1000 10 60 0.79 3.8 17.5 70 40.0 IMS-5 1200 10 45 0.25 1.5 22.1 60 35.0 IMS-5 1500 10 45 0.25 1.2 26.5 55 33.0 IMS-5 1800 10 45 0.25 1.0 29.9 50 30.0 IMS-5 2200 10 45 0.25 0.97 33.8 50 27.0 IMS-5 2700 10 45 0.25 0.92 47.3 40 25.0 IMS-5 3300 10 45 0.25 0.84 53.0 40 22.0 IMS-5 3900 10 45 0.25 0.80 73.8 35 20.0 IMS-5 4700 10 45 0.25 0.74 81.6 31 19.0 IMS-5 5600 10 44 0.25 0.73 98.9 28 17.0 IMS-5 6800 10 40 0.25 0.66 111.0 27 16.0 IMS-5 8200 10 40 0.25 0.54 119.0 26 15.0 Notes (1) Measured with full length lead (2) Rated DC current: Based on maximum temperature rise not to exceed 15 C at +90 C ambient (3) Incremental current: The minimum typical current at which the inductance will be decreased by 5 % from its initial zero DC value ORDERING INFORMATION IMS-5 10 H 10 % ER e2 MODEL INDUCTANCE VALUE INDUCTANCE TOLERANCE PACKAGE CODE JEDEC LEAD (Pb)-FREE STANDARD GLOBAL PART NUMBER I M S 0 5 E R 100 K MODEL PACKAGE INDUCTANCE INDUCTANCE CODE VALUE TOLERANCE Revison: 07-Feb-17 Document Number: 34048 2 For technical questions, contact: magnetics vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000
