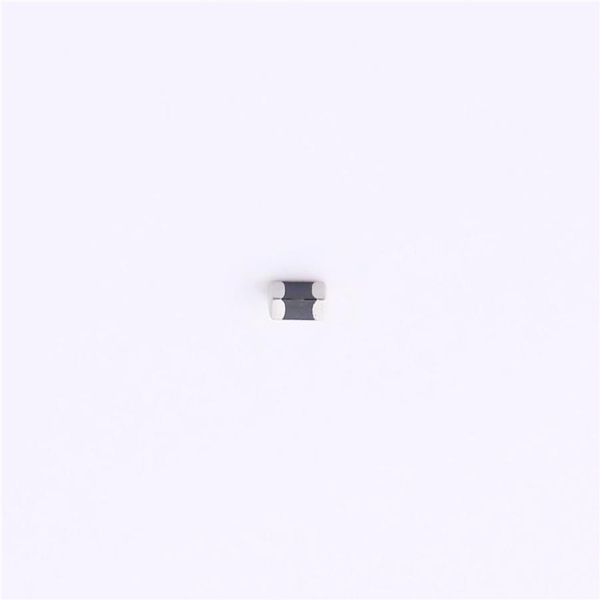

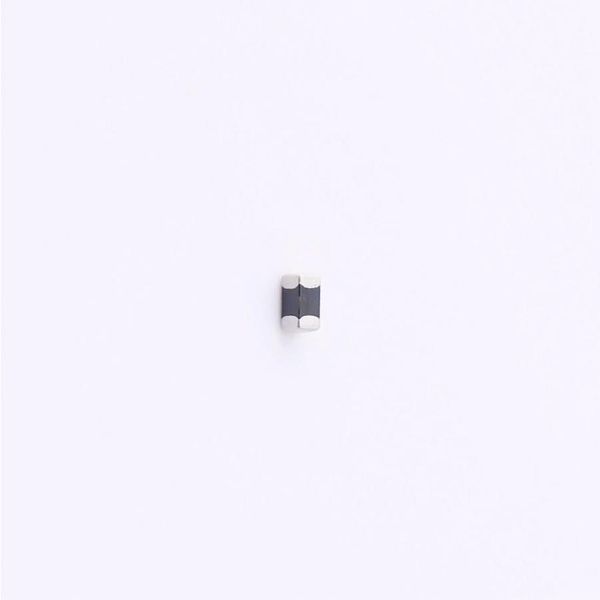

MLV0603E3 www.vishay.com Vishay BCcomponents SMD 0603 Multilayer Varistor FEATURES Surface mount multilayer surge suppressor Inherent bidirectional clamping Excellent energy/volume ratio Suitable for reflow soldering Material categorization: for definitions of compliance please see www.vishay.com/doc 99912 APPLICATIONS Over-voltage and transient voltage protection: QUICK REFERENCE DATA Data lines and I/O port protection PARAMETER VALUE UNIT Protection against ESD transients Maximum continuous voltage On-board protection of ICs and transistors DC 5.6 to 30.0 V AC 4.0 to 25.0 V Modem protection Maximum clamping voltage 15.5 to 65 V LCD protection at 1 A Capacitance range DESCRIPTION 150 to 825 pF (at 1 MHz) Size 0603 (1608M) multilayer chip varistor with NiSn Maximum energy (10/1000 s) 0.1 J terminations. Maximum peak current 30 A Operating temperature range -55 to 125 C PACKAGING Weight 0.005 g Available in 8 mm paper tape, component pitch 4 mm on 180 mm reels containing 4000 pieces. ELECTRICAL DATA AND ORDERING INFORMATION MAXIMUM BREAKDOWN TYPICAL WORKING VOLTAGE CLAMPING PART NUMBER VOLTAGE CAPACITANCE VOLTAGE V V V V CSAP RMS DC b C V V V V pF MLV0603E3 < 10 A 1 mA 1 A, 8/20 s 1 MHz 4.0 5.6 7.1 to 9.3 15.5 825 0403T 7.0 9.0 11.0 to 14.0 20.0 550 0703T 11.0 14.0 16.0 to 20.0 30.0 425 1103T 14.0 18.0 23.0 to 28.0 40.0 225 1403T 20.0 26.0 31.0 to 38.0 58.0 160 2003T 25.0 30.0 37.0 to 46.0 65.0 150 2503T Notes Sinusoidal voltage assumed as normal operating condition. If a non-sinusoidal voltage is present, the crest voltage x 0.707 should be used for type selection. Breakdown voltage at a current of 1 mA, measured according to 4.5 of IEC 61051-1. Parts are not recommended for automotive applications. Revision: 22-Apr-15 Document Number: 29108 1 For technical questions, contact: nlr vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000MLV0603E3 www.vishay.com Vishay BCcomponents DIMENSIONS in millimeters L WT L and L 1 2 3 1.6 0.15 0.8 0.15 0.9 max. 0.35 0.15 T W L L L 2 4 3 L 1 RECOMMENDED FOOTPRINT in millimeters C AB C 1.0 1.0 3.0 A B V/I CHARACTERISTICS Max. leakage current Max. clamping voltage 100 025 020 014 011 007 004 10 1 0.00001 0.0001 0.001 0.01 0.1 1 10 100 CURRENT (A) Revision: 22-Apr-15 Document Number: 29108 2 For technical questions, contact: nlr vishay.com THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc 91000 VOLTAGE (V)
